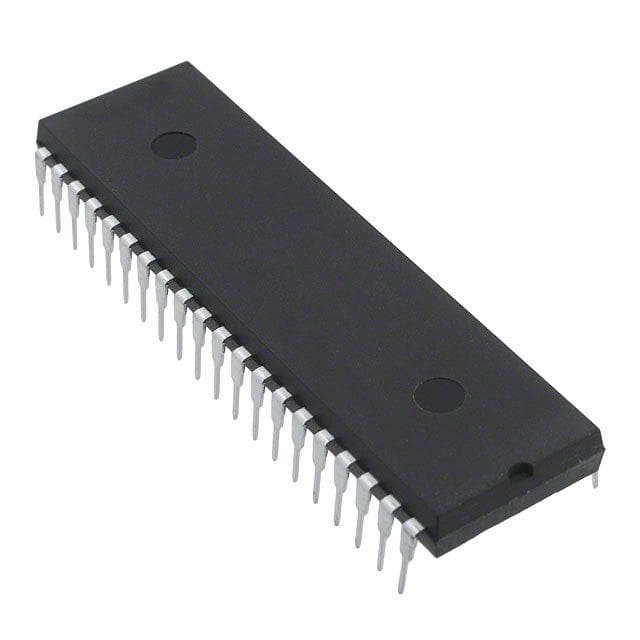

Renesas IP82C55A

Manufacturer No:

IP82C55A

Manufacturer:

Renesas

Package:

DIP

Description:

40 Termination 2.54mm 5V I/O Expander 40 Pin 8MHz 5V DIP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IP82C55A information

Renesas IP82C55A technical specifications, attributes, parameters and parts with similar specifications to Renesas IP82C55A.

Type
Parameter

Factory Lead Time
6 Weeks

Mount
Through Hole

Package / Case
DIP

Number of Pins
40

Packaging
Bulk

Published
2005

JESD-609 Code
e0

Pbfree Code
no

Part Status
Active

Number of Terminations
40

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

HTS Code
8542.39.00.01

Subcategory
Parallel IO Port

Technology
CMOS

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Supply Voltage
5V

Terminal Pitch
2.54mm

Reach Compliance Code
not_compliant

Frequency
8MHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Qualification Status
Not Qualified

Power Supplies
5V

Temperature Grade
INDUSTRIAL

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

Number of I/O
24

Number of Ports
3

uPs/uCs/Peripheral ICs Type
PARALLEL IO PORT, GENERAL PURPOSE

Supply Current-Max
8mA

Length
51.75mm

Height Seated (Max)
6.35mm

REACH SVHC
Unknown

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas IP82C55A.

Datasheets:

intersil-ip82c55a-datasheets-7016.pdf

IP82C55A Overview

The board has been programmed with 24 I/Os.In the packaging with the DIP, there is a device enclosed in the package.There is an option of the Bulk case that you can choose from.As a whole, it consists of 40 terminations.In total, there are 40 pins on the part.There is voltage present at 5V as a result of the device.It is utilized to run NOT SPECIFIED on this part due to its peak reflow temperature.3 ports are present on the device as a whole.It is capable of delivering the power at the position 5V.In addition to the 40 pins, the device has other pins as well.With Through Hole, you can mount the part.As with other PARALLEL IO PORT, GENERAL PURPOSE uPs/uCs/peripheral ICs, it belongs to the PARALLEL IO PORT, GENERAL PURPOSE family.Parallel IO Port series is the series that it belongs to.There is a maximum operating temperature of 85°C when the device is operating.There must be a minimum working temperature of -40°C for this device in order for it to function properly.In order for it to be effective, it must run at a frequency of 8MHz.
