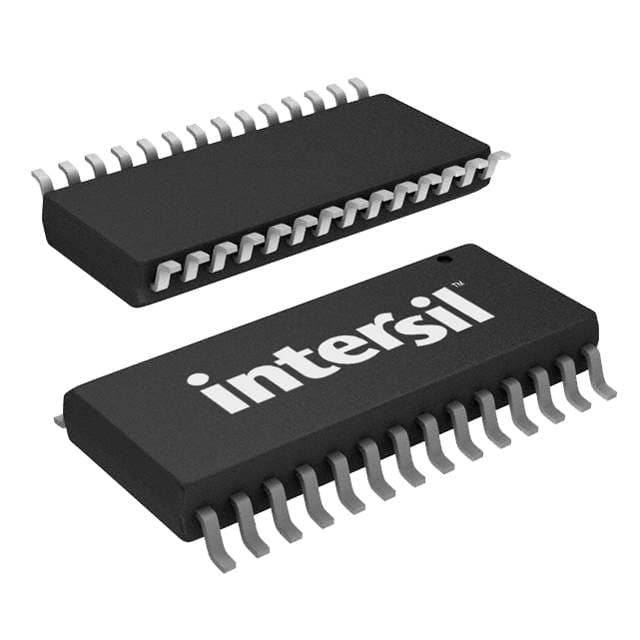

Renesas HIP6021CB-T

Manufacturer No:

HIP6021CB-T

Manufacturer:

Renesas

Package:

SOIC

Description:

1.27mm PMIC SOIC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HIP6021CB-T information

Renesas HIP6021CB-T technical specifications, attributes, parameters and parts with similar specifications to Renesas HIP6021CB-T.

Type
Parameter

Mount
Surface Mount

Package / Case
SOIC

Packaging
Tape & Reel (TR)

Published
1998

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
28

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
ALSO CONTAINS 3 LINEAR CONTROLLERS

Subcategory
Switching Regulator or Controllers

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Terminal Pitch
1.27mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
28

JESD-30 Code
R-PDSO-G28

Number of Outputs
4

Input Voltage-Nom
12V

Temperature Grade
COMMERCIAL

Analog IC - Other Type
SWITCHING CONTROLLER

Input Voltage (Min)
10.8V

Control Mode
VOLTAGE-MODE

Frequency - Switching
215kHz

Input Voltage (Max)
13.2V

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
PUSH-PULL

Length
17.9mm

Height Seated (Max)
2.65mm

Width
7.5mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas HIP6021CB-T.

Datasheets:

intersil-hip6021cbt-datasheets-5759.pdf

HIP6021CB-T Overview

The harley voltage regulator is packaged in SOIC to make voltage regulators' transportation as easy as possible.We are ready to ship package Tape & Reel (TR) to you.Voltage regulator supports a total of 4 outputs.In the switching regulator, you can find 28 terminals that are connected to the board.There is one important thing to keep in mind when there is a pinout for a switching regulator and that is pin 28.In order to proceed with the relow soldering, it is necessary to allow the temperature to peak at 240-peak.In addition to the voltage regulator DC to DC, other Switching Regulator or Controllers's play a significant role in the industry as well.As well as ALSO CONTAINS 3 LINEAR CONTROLLERS, the IC specialiALSO CONTAINS 3 LINEAR CONTROLLERSes in certain areas that are important to the organiALSO CONTAINS 3 LINEAR CONTROLLERSation.The board has a Surface Mount-slot for mounting on PCBs or other types of boards.It will not work at temperatures lower than 0°C.Temperatures higher than 70°C are not recommended.

HIP6021CB-T Features

4 outputs
Peak Reflow Temperature: 240
ALSO CONTAINS 3 LINEAR CONTROLLERS

HIP6021CB-T Applications

There are a lot of Intersil (Renesas Electronics America)
HIP6021CB-T Linear Regulator Controllers applications.

Graphic Cards
Ultra-Low-Dropout
Voltage Regulators
Low-Voltage DSP Power Supplies
Microcontroller Power Supplies
Motherboards
Battery Operating Equipment
Adjustable Supplies
Switching Power Supplies
Error Amplifiers
