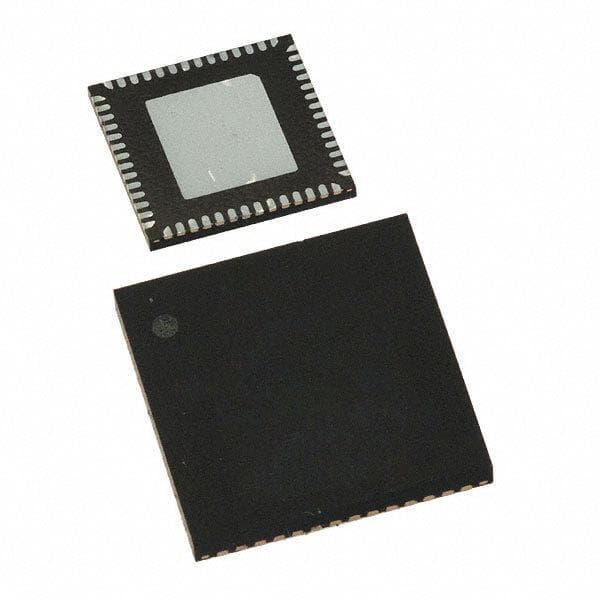

Renesas IDT74SSTVN16859CNLG8

Manufacturer No:

IDT74SSTVN16859CNLG8

Manufacturer:

Renesas

Package:

Description:

13 Bit Specialty Logic IC 56 Pin 0.5mm 2.5V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IDT74SSTVN16859CNLG8 information

Renesas IDT74SSTVN16859CNLG8 technical specifications, attributes, parameters and parts with similar specifications to Renesas IDT74SSTVN16859CNLG8.

Type
Parameter

Mount
Surface Mount

Number of Pins
56

Packaging
Tape & Reel (TR)

Published
2007

JESD-609 Code
e3

Number of Terminations
56

Terminal Finish
MATTE TIN

Max Operating Temperature
70°C

Min Operating Temperature
0°C

HTS Code
8542.39.00.01

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
2.5V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
56

Qualification Status
Not Qualified

Operating Supply Voltage
2.7V

Temperature Grade
COMMERCIAL

Supply Voltage-Min (Vsup)
2.3V

Number of Bits
13

Family
SSTV

Output Polarity
TRUE

Logic IC Type
D FLIP-FLOP

Trigger Type
POSITIVE EDGE

Propagation Delay (tpd)
2.2 ns

fmax-Min
220 MHz

Length
8mm

Height Seated (Max)
1mm

Width
8mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IDT74SSTVN16859CNLG8.

IDT74SSTVN16859CNLG8 Overview

It is used to package items using Tape & Reel (TR).It is necessary to supply voltage 2.5V to ensure that the device is capable of operating normally.Information can be stored in the memory at the rate of 13 bits.The total number of component pins equals 56.Using 56 terminations, signals are prevented from reverberating off the end of the transmission line.A Surface Mount mounting method is used.It is constructed using 56 pins.This device depends on the voltage of 2.7V supplied to it for operation.In addition to being optimized for high quality and reliability, the electronic part belongs to the family of SSTV.There is a need to ensure the operating temperature does not exceed the maximum 70°C.An essential requirement is that its operating temperature be not lower than 0°C.As a logic IC type, D FLIP-FLOP is adopted.
