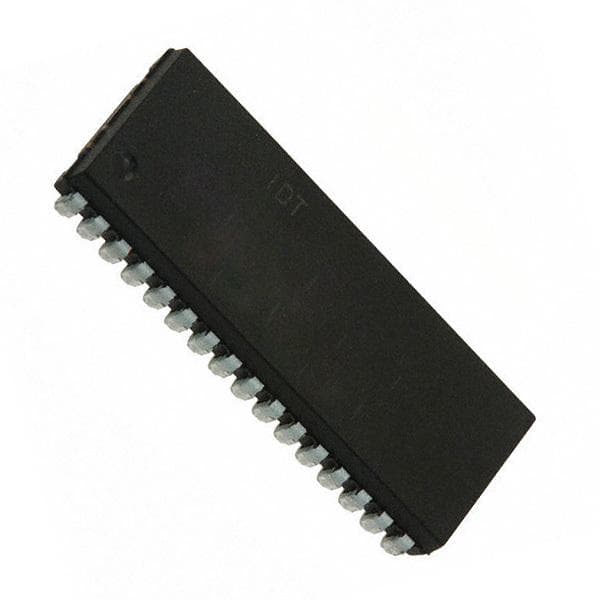

Renesas IDT71V124SA15TYI8

Manufacturer No:

IDT71V124SA15TYI8

Manufacturer:

Renesas

Package:

Description:

3.3V V 32 Pin Memory IC 20.955mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IDT71V124SA15TYI8 information

Renesas IDT71V124SA15TYI8 technical specifications, attributes, parameters and parts with similar specifications to Renesas IDT71V124SA15TYI8.

Type
Parameter

Surface Mount
YES

Number of Pins
32

Packaging
Tape & Reel (TR)

Published
2007

JESD-609 Code
e0

Pbfree Code
no

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
32

ECCN Code
3A991.B.2.B

Terminal Finish
Tin/Lead (Sn85Pb15)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
SRAMs

Technology
CMOS

Terminal Position
DUAL

Terminal Form
J BEND

Peak Reflow Temperature (Cel)
225

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
1.27mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
32

Qualification Status
Not Qualified

Power Supplies
3.3V

Temperature Grade
INDUSTRIAL

Supply Voltage-Min (Vsup)
3.15V

Interface
Parallel

Memory Type
RAM, SRAM - Asynchronous

Supply Current-Max
0.12mA

Organization
128KX8

Output Characteristics
3-STATE

Memory Width
8

Standby Current-Max
0.01A

Memory Density
1048576 bit

Access Time (Max)
15 ns

I/O Type
COMMON

Standby Voltage-Min
3V

Length
20.955mm

Height Seated (Max)
3.7592mm

Width
7.62mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IDT71V124SA15TYI8.

Datasheets:

integrateddevicetechnology-idt71v124sa15tyi8-datasheets-4014.pdf

IDT71V124SA15TYI8 Overview

There is a memory type RAM, SRAM - Asynchronous for this type of device. The case comes in the Tape & Reel (TR) style. The chip contains 32 terminations. As many as 1 functions are supported for comprehensive working. An 3.3V supply is required for this ic memory chip to operate properly. A package of 32 pins is used to protect this memory device. The memory device has 32 pins, which means that it has 32 memory locations, which indicates it is an 32-bit device. The power supply needed for this memory chip is only 3.3V . An COMMON-bit memory mapped I/O port address is used to address this device. There must be at least an -40°C operating temperature for this device. The part should not be operated at temperatures above 85°C degrees Celsius as otherwise, the part may be damaged due to the excessive amount of heat. This device can be operated from a maximum supply current of 0.12mA under ideal conditions. The component is usually referred to as a type of SRAMs.

IDT71V124SA15TYI8 Features

32 Pins
I/O Type: COMMON

IDT71V124SA15TYI8 Applications

There are a lot of Integrated Device Technology (IDT)
IDT71V124SA15TYI8 Memory applications.

personal computers
servers
supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
