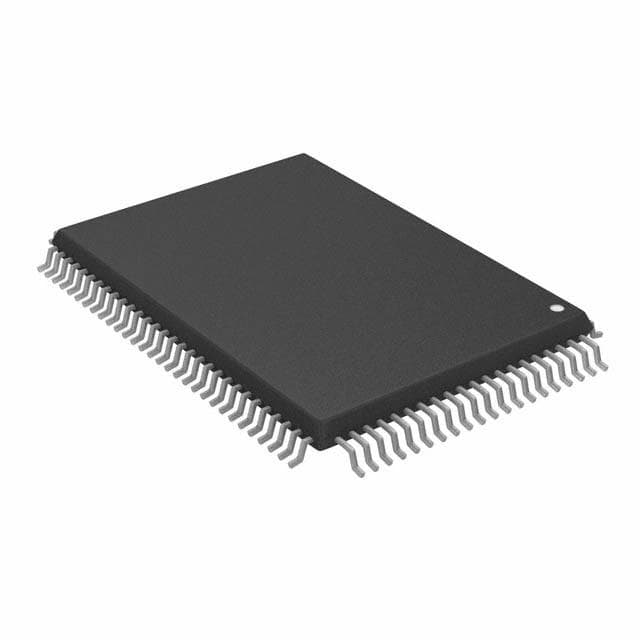

Renesas IDT71V3577YS85PFI
Renesas IDT71V3577YS85PFI

Renesas IDT71V3577YS85PFI

Manufacturer No:

IDT71V3577YS85PFI

Manufacturer:

Renesas

Package:

LQFP

Description:

3.3V V 100 Pin Memory IC 20mm mm

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IDT71V3577YS85PFI information

Renesas IDT71V3577YS85PFI technical specifications, attributes, parameters and parts with similar specifications to Renesas IDT71V3577YS85PFI.

  • Type
  • Parameter
  • Package / Case
  • LQFP
  • Surface Mount
  • YES
  • Published
  • 2006
  • JESD-609 Code
  • e0
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 100
  • ECCN Code
  • 3A991.B.2.A
  • Terminal Finish
  • Tin/Lead (Sn85Pb15)
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -40°C
  • Additional Feature
  • FLOW-THROUGH ARCHITECTURE
  • HTS Code
  • 8542.32.00.41
  • Subcategory
  • SRAMs
  • Technology
  • CMOS
  • Terminal Position
  • QUAD
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 240
  • Number of Functions
  • 1
  • Supply Voltage
  • 3.3V
  • Terminal Pitch
  • 0.65mm
  • Reach Compliance Code
  • not_compliant
  • Time@Peak Reflow Temperature-Max (s)
  • 20
  • Pin Count
  • 100
  • JESD-30 Code
  • R-PQFP-G100
  • Supply Voltage-Max (Vsup)
  • 3.465V
  • Power Supplies
  • 3.3V
  • Temperature Grade
  • INDUSTRIAL
  • Supply Voltage-Min (Vsup)
  • 3.135V
  • Interface
  • Parallel
  • Memory Type
  • RAM, SRAM
  • Operating Mode
  • SYNCHRONOUS
  • Clock Frequency
  • 87MHz
  • Supply Current-Max
  • 0.19mA
  • Organization
  • 128KX36
  • Output Characteristics
  • 3-STATE
  • Memory Width
  • 36
  • Standby Current-Max
  • 0.035A
  • Memory Density
  • 4718592 bit
  • Access Time (Max)
  • 8.5 ns
  • I/O Type
  • COMMON
  • Standby Voltage-Min
  • 3.14V
  • Length
  • 20mm
  • Height Seated (Max)
  • 1.6mm
  • Width
  • 14mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IDT71V3577YS85PFI.

Datasheets:

IDT71V3577YS85PFI Overview


Its memory type can be classified as RAM, SRAM. It is available in LQFP case. 100 terminations are planted on the chip. This part supports as many as 1 functions for the comprehensive working procedure. This ic memory chip is designed to be supplied with 3.3V. The memory has a clock frequency rotation within 87MHz. This memory device has 100 pins, indicating it has 100 memory locations. In spite of all the merits this chip has, it also features FLOW-THROUGH ARCHITECTURE to level up system performance. Talking about power supplies, this memory chip requires merely 3.3V. This device has COMMON-bit memory mapped I/O port addresses. The minimum operating temperature of this device must not be less than -40°C. It is recommended for operation at temperatures no higher than. It is able to operate from a max supply current of 0.19mA. Usually, this memory ics is regarded as a type of SRAMs.

IDT71V3577YS85PFI Features


Package / Case: LQFP
Additional Feature:FLOW-THROUGH ARCHITECTURE
I/O Type: COMMON


IDT71V3577YS85PFI Applications


There are a lot of Integrated Device Technology (IDT)
IDT71V3577YS85PFI Memory applications.


  • Cache memory
  • cell phones
  • eSRAM
  • mainframes
  • multimedia computers
  • networking
  • personal computers
  • servers
  • supercomputers
  • telecommunications
