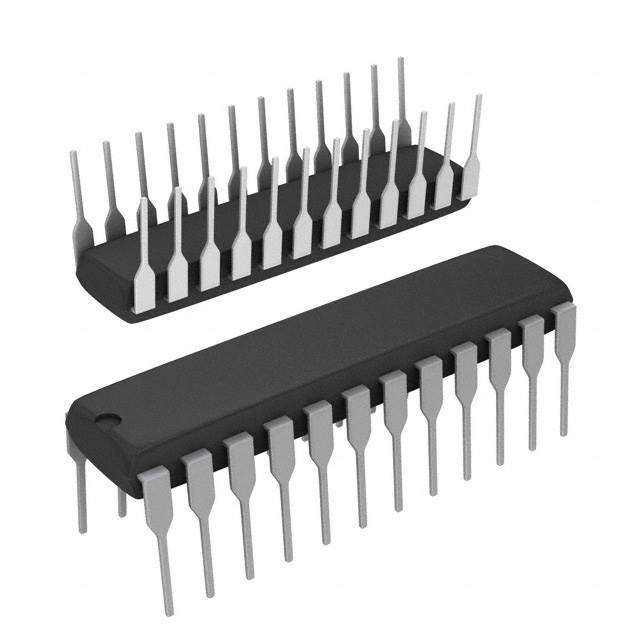

Renesas IDT6116SA45TPGI

Manufacturer No:

IDT6116SA45TPGI

Manufacturer:

Renesas

Package:

PDIP

Description:

5V V Through Hole 24 Pin Memory IC 16 kb kb 100mA mA 8b b

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IDT6116SA45TPGI information

Renesas IDT6116SA45TPGI technical specifications, attributes, parameters and parts with similar specifications to Renesas IDT6116SA45TPGI.

Type
Parameter

Mount
Through Hole

Package / Case
PDIP

Number of Pins
24

Packaging
Rail/Tube

Published
2008

JESD-609 Code
e3

Number of Terminations
24

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
SRAMs

Technology
CMOS

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
2.54mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
24

Qualification Status
Not Qualified

Operating Supply Voltage
5V

Power Supplies
5V

Temperature Grade
INDUSTRIAL

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

Number of Ports
1

Nominal Supply Current
100mA

Memory Type
RAM, SRAM - Asynchronous

Access Time
45 ns

Organization
2KX8

Output Characteristics
3-STATE

Memory Width
8

Address Bus Width
11b

Density
16 kb

Standby Current-Max
0.002A

I/O Type
COMMON

Sync/Async
Asynchronous

Word Size
8b

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IDT6116SA45TPGI.

Datasheets:

integrateddevicetechnology-idt6116sa45tpgi-datasheets-8206.pdf

IDT6116SA45TPGI Overview

There is a RAM, SRAM - Asynchronous memory type associated with this device. Rail/Tube-cases are available. There is a PDIP case embedded in it. The chip is terminated with 24 terminations. In total, this part supports 1 functions. Memory devices such as this one are designed to be powered by 5V and should be used as such. There are 24 pins on the package of the memory device. A memory device with 24 pins means that it contains 24 memory locations, indicating that it has 24 pins. This memory's operating supply voltage is 5V. Using Through Hole mounting, this chip offers straightforward and high-efficiency mounting. It is rated for a nominal supply current of 100mA for this memory component. This memory chip has 1 ports for accessing one memory address via read or write. Power supplies for this memory chip are merely 5V . There are COMMON-bit addresses mapped into the memory for I/O ports on this device. This device must not operate below -40°C . Ideally, this memory ics should be operated at a temperature of no more than 85°C°C. SRAMs-types are usually considered to be this component. In order for this part to work properly, there must be a minimum voltage supply of 4.5V volts. Its operating voltage shall not exceed 5.5V.

IDT6116SA45TPGI Features

Package / Case: PDIP
24 Pins
Operating Supply Voltage:5V
I/O Type: COMMON

IDT6116SA45TPGI Applications

There are a lot of Integrated Device Technology (IDT)
IDT6116SA45TPGI Memory applications.

mainframes
multimedia computers
networking
personal computers
servers
supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
