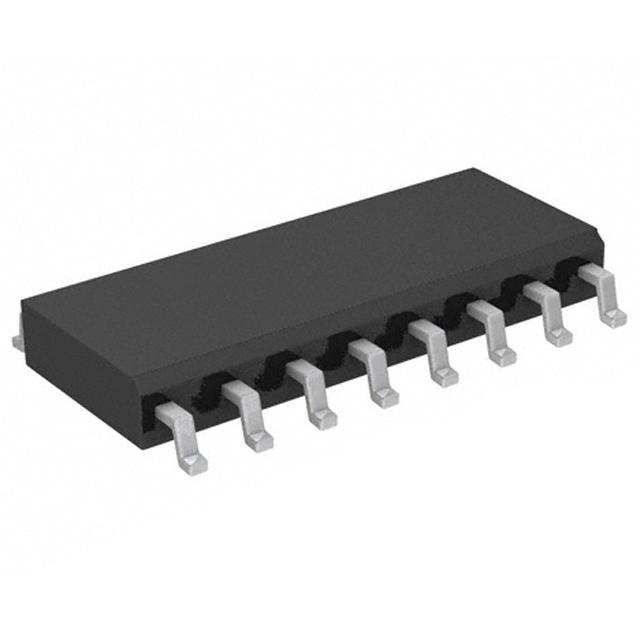

Renesas 23S08-2DCGI8

Manufacturer No:

23S08-2DCGI8

Manufacturer:

Renesas

Package:

SOIC

Description:

3.3V 133.3MHz Clock Generators 16 Pins SOIC 16 Terminals Tape and Reel

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

23S08-2DCGI8 information

Renesas 23S08-2DCGI8 technical specifications, attributes, parameters and parts with similar specifications to Renesas 23S08-2DCGI8.

Type
Parameter

Factory Lead Time
7 Weeks

Contact Plating
Tin

Mount
Surface Mount

Package / Case
SOIC

Number of Pins
16

Packaging
Tape and Reel

Published
2009

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
16

ECCN Code
EAR99

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Clock Drivers

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
3.3V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
16

Qualification Status
Not Qualified

Temperature Grade
INDUSTRIAL

Number of Circuits
1

Max Supply Voltage
3.6V

Min Supply Voltage
3V

Nominal Supply Current
45mA

Frequency (Max)
133.3MHz

Family
23S

Output Characteristics
3-STATE

Input
LVTTL

Logic IC Type
PLL BASED CLOCK DRIVER

Max I(ol)
0.008 A

Same Edge Skew-Max (tskwd)
0.2 ns

Number of True Outputs
8

Height
1.5mm

Length
9.9mm

Width
3.9mm

Thickness
1.5mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas 23S08-2DCGI8.

Datasheets:

integrateddevicetechnology-23s082dcgi8-datasheets-6306.pdf

23S08-2DCGI8 Overview

Clock generator is packaged in the way of Tape and Reel. Clock PLL is embedded in the SOIC package. The peak reflow temperature (Cel) amounts to NOT SPECIFIED to be essentially indestructible. 16 terminations can be found in frequency generators. The supply voltage of 3.3V allows for high efficiency. LVTTL is designed for clock generator's input. 1 circuits are used to achieve clock PLL's superior flexibility. 133.3MHz is the maximal value for normal operation. Clock PLL is equipped with 16 pin count. Clock generator is designed with 16 pins. The operating temperature should be higher than -40°C. The operating temperature should be lower than 85°C. The supply voltage should be maintained at 3.3V for high efficiency. Clock generator can also be included into Clock Drivers. The maximal same edge skew (tskwd) can not be exceeded. There are 8 true outputs. This clock generator belongs to the family of 23S. Clock generator operates with the maximal supply voltage of 3.6V. Clock PLL operates with the minimal supply voltage of 3V. The logic IC PLL clock adopts is PLL BASED CLOCK DRIVER.
