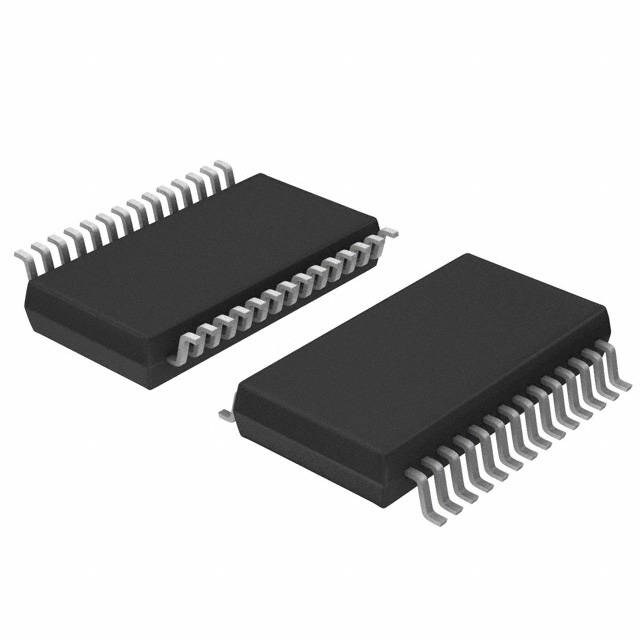

Renesas IDT5V993A-7QGI

Manufacturer No:

IDT5V993A-7QGI

Manufacturer:

Renesas

Package:

SSOP

Description:

3.3V 85MHz Clock Generators 28 Pins SSOP 28 Terminals

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IDT5V993A-7QGI information

Renesas IDT5V993A-7QGI technical specifications, attributes, parameters and parts with similar specifications to Renesas IDT5V993A-7QGI.

Type
Parameter

Mount
Surface Mount

Package / Case
SSOP

Published
2009

JESD-609 Code
e3

Pbfree Code
yes

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
28

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Clock Drivers

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.635mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
28

JESD-30 Code
R-PDSO-G28

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
3.6V

Power Supplies
3.3V

Temperature Grade
INDUSTRIAL

Number of Circuits
1

Frequency (Max)
85MHz

Family
5V

Input
LVTTL

Logic IC Type
PLL BASED CLOCK DRIVER

Number of True Outputs
8

Length
9.906mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IDT5V993A-7QGI.

Datasheets:

integrateddevicetechnology-idt5v993a7qgi-datasheets-7000.pdf

IDT5V993A-7QGI Overview

Embedded in the SSOP package is this Clock PLL. Frequency generator is capable of operating at a maximum temperature of 260 when reflowing. It contains a total of 28 terminations within RF synthesizer. This clock generator ic should receive a voltage of 3.3V. It is designed that the Clock PLL's input should be LVTTL. A total of 1 circuits are implemented to access the full performance of the electrical part. Using this clock-based frequency synthesizer, you can achieve a maximum frequency of 85MHz. Clock PLL is capable of receiving a maximum of 3.6V as a supply voltage. There should be a voltage supply above 3V for this frequency generator in order to ensure its safety. In this IC, a 28-bit frequency generator is designed specifically for use in microprocessors. There are -40°C operations available on this frequency generator and it operates at low temperatures. It is possible for the clock generator ic to work at 85°C with a reduced performance. As such, it is often referred to as a kind of Clock Drivers clock PLL. A analog clock generator with 8 true output enable pins is configured for this application. When searching for parts belonging to the 5V family, similar electric components can be found. Logic circuits containing this analog clock generator are commonly used in PLL BASED CLOCK DRIVER logic.

IDT5V993A-7QGI Features

Available in the SSOP
Supply voltage of 3.3V
8 true outputs

IDT5V993A-7QGI Applications

There are a lot of Integrated Device Technology (IDT)
IDT5V993A-7QGI Clock Generators applications.

1 Gigabit Ethernet
10 Gigabit Ethernet
FPGA and processor clocks
Line cards used in telephone exchange
Fiber Channel
PCI express cards
Infotainment systems
Medical equipment
Multi-function printers
Media broadcast servers
