ST L9733CNTR

Manufacturer No:

L9733CNTR

Manufacturer:

Package:

28-SSOP (0.295, 7.50mm Width) Exposed Pad

Description:

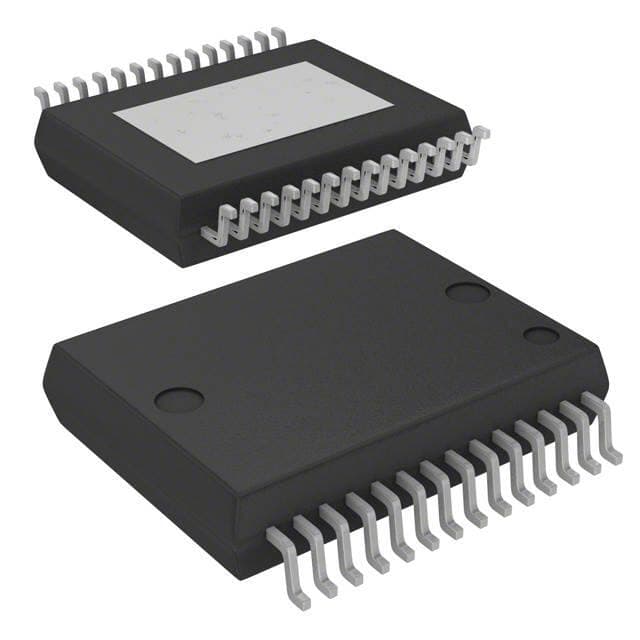

5V N-Channel 0.65mm PMIC L9733 28 Pin 5V 28-SSOP (0.295, 7.50mm Width) Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

L9733CNTR information

ST L9733CNTR technical specifications, attributes, parameters and parts with similar specifications to ST L9733CNTR.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 7 months ago)

Factory Lead Time
30 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
28-SSOP (0.295, 7.50mm Width) Exposed Pad

Number of Pins
28

Operating Temperature
-40°C~125°C TA

Packaging
Tape & Reel (TR)

JESD-609 Code
e3

Feature
PWM Input

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
28

ECCN Code
EAR99

Resistance
700mOhm

Terminal Finish
Matte Tin (Sn) - annealed

Subcategory
Peripheral Drivers

Technology
MOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.65mm

Pin Count
28

Number of Outputs
8

Output Type
N-Channel

Max Output Current
800mA

Operating Supply Voltage
5V

Power Supplies
5V

Interface
SPI

Output Configuration
High Side or Low Side

Voltage - Supply (Vcc/Vdd)
4.5V~5.5V

Max Supply Current
8.5mA

Input Type
Non-Inverting

Turn On Delay Time
20 ?s

Switch Type
General Purpose

Output Current per Channel
1A

Rise Time
70ns

Fall Time (Typ)
70 ns

Turn-Off Delay Time
100 ?s

Ratio - Input:Output
1:8

Voltage - Load
4.5V~18V

Driver Number of Bits
8

Fault Protection
Open Load Detect, Over Temperature

Output Peak Current Limit-Nom
1A

Rds On (Typ)
700m ? (Max)

Download datasheets and manufacturer documentation for ST L9733CNTR.

Datasheets:

stmicroelectronics-l9733xptr-datasheets-5257.pdf

L9733CNTR Description

A DC-DC converter integrated circuit made for use in automotive applications is the STMicroelectronics L9733CNTR. It has a 4.5V to 40V input voltage range, runs at a maximum current of 700mA, and offers a regulated output voltage of up to 28V. The gadget has protection against overvoltage and overheating in addition to a power-saving mode that lowers standby current usage. It may be adjustable for various application requirements by adjusting the output voltage and other parameters using a range of external components.

L9733CNTR Features

Input voltage range: 4.5V to 40V
Maximum output current: 700mA
Regulated output voltage: up to 28V
Overvoltage and overtemperature protection
DC-DC converter for automotive applications
Power saving mode for reduced standby current consumption
Adjustable key parameters using external components for flexibility in different applications.

L9733CNTR Applications

Motor control
Battery management
LED lighting systems
General purpose power supply
