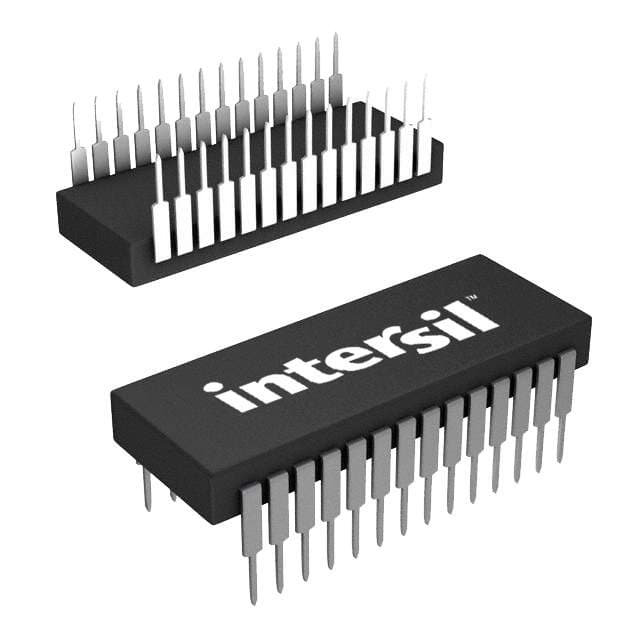

Renesas ICM7218AIJIR5254

Manufacturer No:

ICM7218AIJIR5254

Manufacturer:

Renesas

Package:

CDIP

Description:

5V 2.54mm PMIC 28 Pin 5V CDIP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ICM7218AIJIR5254 information

Renesas ICM7218AIJIR5254 technical specifications, attributes, parameters and parts with similar specifications to Renesas ICM7218AIJIR5254.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Through Hole

Package / Case
CDIP

Number of Pins
28

Published
1997

JESD-609 Code
e3

Part Status
Active

Number of Terminations
28

ECCN Code
EAR99

Terminal Finish
Tin (Sn)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
ONE DECIMAL POINT OUTPUT

HTS Code
8542.39.00.01

Subcategory
Display Drivers

Technology
CMOS

Terminal Position
DUAL

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
2.54mm

Pin Count
28

Power Supplies
5V

Temperature Grade
INDUSTRIAL

Max Supply Voltage
6V

Operating Supply Current
2.5mA

Nominal Supply Current
2.5A

Max Supply Current
2.5mA

Interface IC Type
LED DISPLAY DRIVER

Number of Segments
64

Multiplexed Display Capability
YES

Display Mode
SEGMENT

Data Input Mode
PARALLEL

Number of Digits/Characters
8-DIGIT

Height Seated (Max)
5.92mm

Width
15.24mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ICM7218AIJIR5254.

Datasheets:

intersil-icm7218aijir5254-datasheets-1649.pdf

ICM7218AIJIR5254 Overview

Its CDIP package is used to save board space. 28 terminations are designed for its operation.There are 28 pins used to form the base of its configuration.There are 64 segments.It is mounted in the way of Through Hole.The supply voltage of 6V is an acceptable maximum value.It is equipped with 28 pin count.It is also classified into Display Drivers according to its characteristics.It works with the minimal supply voltage of 4V to meet highest efficiency standards.This device is able to provide high efficiency when the maximal supply current should be less than 2.5mA.In order to ensure stable operation, the operating temperature should not exceed 85°C.The operating temperature should be higher than -40°C so as to realize stable operation.LED DISPLAY DRIVER is the interface IC that the part is equipped with.Moreover, this LED driver is characterized by ONE DECIMAL POINT OUTPUT.

ICM7218AIJIR5254 Features

Available in the CDIP package
Supply voltage of 5V
ONE DECIMAL POINT OUTPUT

ICM7218AIJIR5254 Applications

There are a lot of Intersil (Renesas Electronics America)
ICM7218AIJIR5254 LED Driver ICs applications.

General lighting
Down lighting
Architectural lighting
Street lighting
Stage and Studio lighting
Refrigeration lighting
Portable lighting
Gallery lighting
Museum lighting
High-end retail lighting
