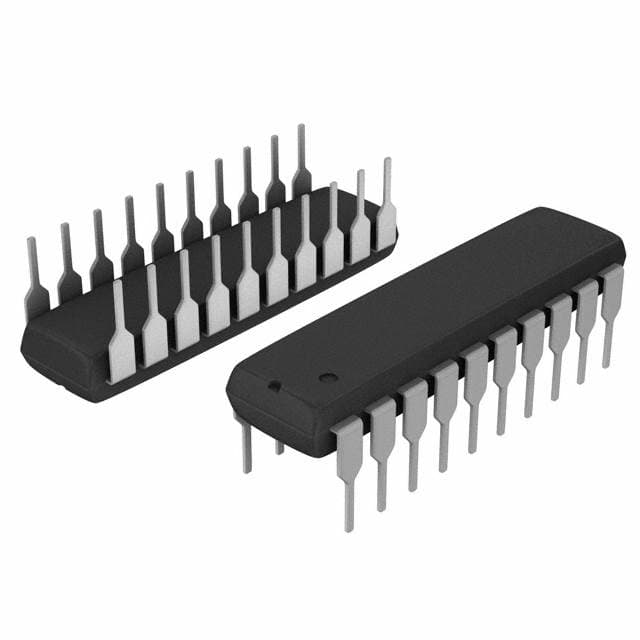

Renesas ICL3223CP
Renesas ICL3223CP

Renesas ICL3223CP

Manufacturer No:

ICL3223CP

Manufacturer:

Renesas

Package:

DIP

Description:

20 Terminations 20 Pin Receivers 2 Bits 2 Functions

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ICL3223CP information

Renesas ICL3223CP technical specifications, attributes, parameters and parts with similar specifications to Renesas ICL3223CP.

  • Type
  • Parameter
  • Mount
  • Through Hole
  • Package / Case
  • DIP
  • Number of Pins
  • 20
  • Published
  • 2001
  • JESD-609 Code
  • e0
  • Part Status
  • Discontinued
  • Number of Terminations
  • 20
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin/Lead (Sn/Pb)
  • HTS Code
  • 8542.39.00.01
  • Subcategory
  • Line Driver or Receivers
  • Technology
  • CMOS
  • Terminal Position
  • DUAL
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Number of Functions
  • 2
  • Supply Voltage
  • 3.3V
  • Terminal Pitch
  • 2.54mm
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Pin Count
  • 20
  • Qualification Status
  • Not Qualified
  • Operating Temperature (Max)
  • 70°C
  • Supply Voltage-Max (Vsup)
  • 5.5V
  • Power Supplies
  • 3.3/5V
  • Temperature Grade
  • COMMERCIAL
  • Nominal Supply Current
  • 1μA
  • Data Rate
  • 250 kbps
  • Differential Output
  • NO
  • Input Characteristics
  • SCHMITT TRIGGER
  • Interface IC Type
  • LINE TRANSCEIVER
  • Driver Number of Bits
  • 2
  • Receiver Number of Bits
  • 2
  • Interface Standard
  • EIA-232; TIA-232; V.24; V.28
  • Receive Delay-Max
  • 300 ns
  • Output Low Current-Max
  • 0.0016A
  • Out Swing-Min
  • 10 V
  • Length
  • 25.895mm
  • Height Seated (Max)
  • 5.33mm
  • Width
  • 7.62mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Contains Lead

Download datasheets and manufacturer documentation for Renesas ICL3223CP.

Datasheets:

ICL3223CP Overview


Designed for common LEDs, this driver IC features an enhanced DIP package.An output voltage range of 3.3V is sufficient to run this line driver ic efficiently.There are 20 terminations in this wide receiver so that signals can be driven from the data and received.The transceiver is packaged with 20 market standard pinouts so that it can be easily used.20-pin driver chip with enhanced power dissipation.A combination of optical transceiver downsizing and high-density Through Hole mounting reduces the package size dramatically.In this ic receiver, the resolution was able to be set to a maximum of 2 bits.In the case of this receiver, a resolution of 2 bits is typically specified.There is a subcategory called Line Driver or Receivers for this rf transceiver module.It is designed so that it can be operated from a 3.3/5V power supply with this driver IC.LINE TRANSCEIVER is the IC type of ic receiver, used for controlling and managing information sharing.In addition, this transceiver module can't operate at temperatures higher than 70°C.In order to avoid damaging this transceiver module, its manufacturer recommends using a supply voltage below 5.5V.It requires a voltage supply of at least 3V in order to run.

ICL3223CP Features


20 pin count
20 pins
3.3/5V power supply


ICL3223CP Applications


There are a lot of Intersil (Renesas Electronics America)
ICL3223CP Drivers/Receivers/Transceivers applications.


  • Wired telephone
  • Cordless telephone
  • Desktop PC
  • Notebook
  • Pocket PC
  • Desktop radio
  • Clock radio
  • Tuner
  • Portable radio
  • Car radio
