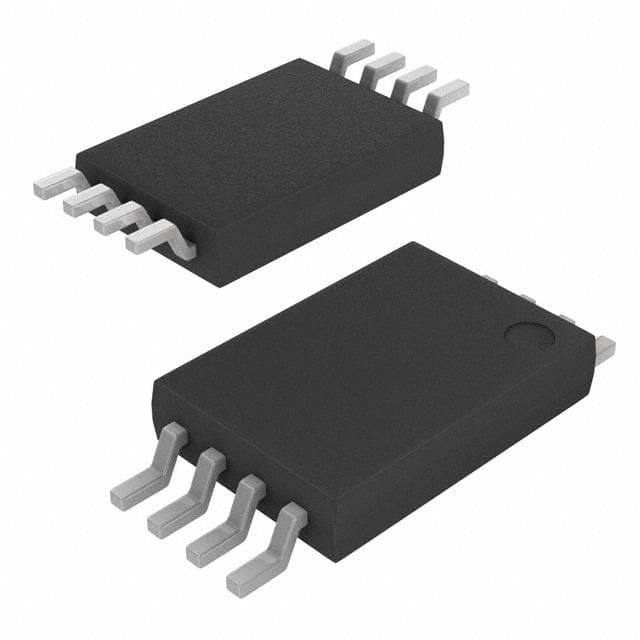

Renesas X60250V8IZ

Manufacturer No:

X60250V8IZ

Manufacturer:

Renesas

Package:

TSSOP

Description:

0.65mm PMIC 1 Channel 3V TSSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

X60250V8IZ information

Renesas X60250V8IZ technical specifications, attributes, parameters and parts with similar specifications to Renesas X60250V8IZ.

Type
Parameter

Mount
Surface Mount

Package / Case
TSSOP

Published
2005

Tolerance
1%

JESD-609 Code
e3

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Temperature Coefficient
70 ppm/°C

Terminal Finish
MATTE TIN

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Voltage References

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
8

JESD-30 Code
R-PDSO-G8

Number of Outputs
1

Output Voltage
1.25V

Temperature Grade
INDUSTRIAL

Supply Voltage-Min (Vsup)
2.7V

Number of Channels
1

Trim/Adjustable Output
YES

Analog IC - Other Type
THREE TERMINAL VOLTAGE REFERENCE

Current - Output
400μA

Quiescent Current
60μA

Voltage - Output
1.25V

Reference Type
Series

Length
4.4mm

Width
3mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas X60250V8IZ.

Datasheets:

intersil-x60250v8iz-datasheets-0245.pdf

X60250V8IZ Overview

TSSOP is used to simplify the process.Based on the Series control, this part serves as a voltage reference.Different functions are terminated with 8.The voltage reference should have 1% tolerance.IC THREE TERMINAL VOLTAGE REFERENCE is coupled with the reference voltage.Test statistics determine the output voltage 1.25V.Having 1 outputs is sufficient.The voltage reference ic has 8 pins.During reflow soldering, the temperature shouldn't rise above 260.Various applications are available for this type of Voltage References.It can be used with 400μA inputs.There are Surface Mount applications that can be used with the reference voltage.Communications with high quality are limited to 1 channels.0 volts is the required supply voltage.There is a minimum voltage requirement of 2.7V.An ambient temperature of 85°C should be used for operation.The voltage reference circuit can operate at a temperature of -40°C.Voltage 1.25V is outputted.During idle time, the voltage reference circuit uses 60μA.

X60250V8IZ Features

1% Tolerance
THREE TERMINAL VOLTAGE REFERENCE Analog IC
Peak Reflow Temperature: 260
Channel Number: 1

X60250V8IZ Applications

There are a lot of Intersil (Renesas Electronics America)
X60250V8IZ Voltage Reference applications.

PCMCIA cards
Automotive
3 V/5 V, 8-bit to 12-bit data converters
Precision data acquisition systems
High resolution converters
Industrial process control systems
Precision instruments
Notebook Computers
Cell Phones
Industrial Process Control
