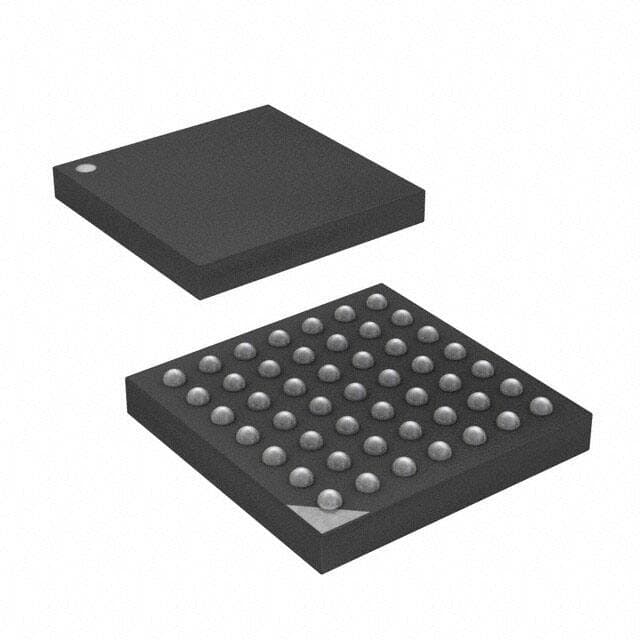

LATTICE ICE40LP1K-CM49

Manufacturer No:

ICE40LP1K-CM49

Manufacturer:

LATTICE

Package:

UCBGA-49

Description:

Field Programmable Gate Array, 133MHz, 1280-Cell, CMOS, PBGA49, UCBGA-49

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ICE40LP1K-CM49 information

LATTICE ICE40LP1K-CM49 technical specifications, attributes, parameters and parts with similar specifications to LATTICE ICE40LP1K-CM49.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
LATTICE SEMICONDUCTOR CORP

Package Description
UCBGA-49

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8542.31.00.01

Samacsys Manufacturer
Lattice Semiconductor

Clock Frequency-Max
133 MHz

Combinatorial Delay of a CLB-Max
9.36 ns

JESD-30 Code
S-PBGA-B49

JESD-609 Code
e1

Length
3 mm

Moisture Sensitivity Level
3

Number of CLBs
160

Number of Equivalent Gates
1280

Number of Inputs
35

Number of Logic Cells
1280

Number of Outputs
35

Number of Terminals
49

Operating Temperature-Max
100 °C

Operating Temperature-Min
-40 °C

Organization
160 CLBS

Package Body Material
PLASTIC/EPOXY

Package Equivalence Code
BGA49,7X7,16

Package Shape
SQUARE

Package Style
GRID ARRAY, VERY THIN PROFILE, FINE PITCH

Peak Reflow Temperature (Cel)
260

Programmable Logic Type
FIELD PROGRAMMABLE GATE ARRAY

Qualification Status
Not Qualified

Seated Height-Max
1 mm

Supply Voltage-Max
1.26 V

Supply Voltage-Min
1.14 V

Supply Voltage-Nom
1.2 V

Surface Mount
YES

Technology
CMOS

Temperature Grade
INDUSTRIAL

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Terminal Form
BALL

Terminal Pitch
0.4 mm

Terminal Position
BOTTOM

Time@Peak Reflow Temperature-Max (s)
30

Width
3 mm

Download datasheets and manufacturer documentation for LATTICE ICE40LP1K-CM49.

Datasheets:

LATT-S-A0019793950-1.pdf

ICE40LP1K-CM49 Overview

The package that contains this software is called 49-VFBGA. A FIELD PROGRAMMABLE GATE ARRAY-based FPGA is one of these types. There are 35 I/Os for better data transfer. In order for the device to operate, a supply voltage of 1.2V volts needs to be provided. Part of the Field Programmable Gate Arrays family, this FPGA part is a programmable gate array. FPGA modules can be attached to development boards using a Surface Mount-connector. This device is powered by a 1.14V~1.26V battery. There are many types of FPGAs in the iCE40? LP series, this is one of them. Fpga chips is recommended that the operating temperature be kept wFpga chipshin the range -40°C~100°C TJ while the machine is operating. A device such as this one has 35 outputs built into it. Fpga chips is designed to maximiTraye space efficiency by containing the FPGA model in Tray. In total, it has a total of 49 terminations. As far as the RAM bits are concerned, this device offers you a total of 65536. If you are looking for related parts, you can use the base part number ICE40 as a starting point. For the program to work properly, the RAM si8kBe of this FPGA module must reach 8kB GB in order to ensure normal operation. In this case, 49 pins are used in the design. 160 LABs/CLBs are configured on this FPGA. Design engineers can fully take advantage of its flexibility when operating at 1.2V supply voltage. In this FPGA module, there is a memory of 8kB that can be used to store programs and data. In order to store and transfer data, a total of 1280 registers are used. An architecture consists of 160 CLBs. As fast as 533MHz can be reached with this FPGA.

ICE40LP1K-CM49 Features

35 I/Os
Up to 65536 RAM bits
49 LABs/CLBs
1280 registers

ICE40LP1K-CM49 Applications

There are a lot of Lattice Semiconductor Corporation
ICE40LP1K-CM49 FPGAs applications.

Random logic
ASIC prototyping
Medical imaging
Computer hardware emulation
Integrating multiple SPLDs
Voice recognition
Cryptography
Filtering and communication encoding
Aerospace and Defense
Medical Electronics

User Guide
