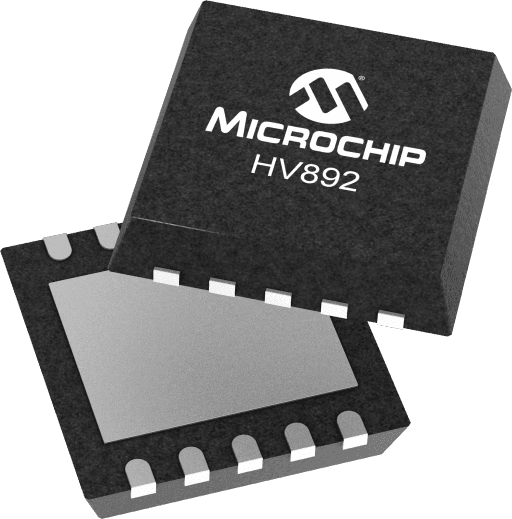

Microchip HV892K7-G

Manufacturer No:

HV892K7-G

Manufacturer:

Microchip

Package:

10-WDFN Exposed Pad

Description:

INDUCTORLESS LIQUID LENS DRIVER

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HV892K7-G information

Microchip HV892K7-G technical specifications, attributes, parameters and parts with similar specifications to Microchip HV892K7-G.

Type
Parameter

DC/DC
Internal charge pump

Input Voltage min (V)
2.65

Input Voltage max (V)
5.5

Output Voltage min (VRMS)
10

Output Voltage max (VRMS)
60

Load min (pF)
100

Load max (pF)
200

Package
DFN-10

Download datasheets and manufacturer documentation for Microchip HV892K7-G.

User Guide:

4120374e77d7f1398d55c2ed98bf4737.pdf

Data Sheets:

a87852837f8825f90cbd3778a243be19.pdf

The HV892 liquid lens driver is controlled via an I2C interface, is capable of driving capacitive loads of up to 200pF, and is compatible with 40VRMS to 60VRMS lenses. A single byte (AMP) written to the HV892 controls the operation of the driver. Setting AMP = 01h to FFh controls output amplitude in 255 monotonic steps. Setting AMP = 00h causes the HV892 to go into low power standby mode, consuming less than 1.0µA. When active, the HV892 draws less than 20mA. A charge pump boost converter integrated on-chip provides the high voltage necessary for driving the lens. No external inductors or diodes are needed. Two ceramic chip capacitors are the only external components required for a complete lens driver circuit. An H-bridge output stage provides AC drive to the lens, allowing the use of a single high voltage boost converter while providing alternating polarity to the lens. Controlled rising and falling edges on the drive waveform reduces EMI. The HV892 is offered in a 10-Lead 4x4mm DFN package.

Drives capacitive loads up to 200pF
Programmable drive amplitude
(compatible with 40VRMS to 60VRMS lenses)
On-chip boost converter
No external inductor
I2C interface
Low operating current (=20mA)
Low standby current (=1.0µA)
Controlled drive edge reduces EMI
10-Lead 4x4mm DFN Package
