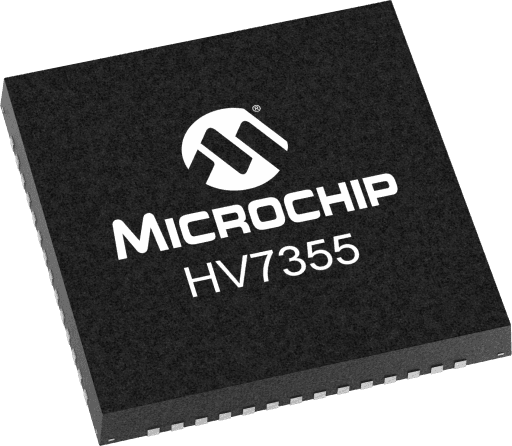

Microchip HV7355K6-G

Manufacturer No:

HV7355K6-G

Manufacturer:

Microchip

Package:

56-VFQFN Exposed Pad

Description:

8-CHANNEL, HIGH SPEED, UNIPOLAR, ULTRASOUND PULSER 1.5A 150V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HV7355K6-G information

Microchip HV7355K6-G technical specifications, attributes, parameters and parts with similar specifications to Microchip HV7355K6-G.

Type
Parameter

# of Channels
8

Output Voltage (V)
+5 to +150

Output Current (A)
±1.5

Type
Monolithic

Package
QFN-56

Features
Built-in floating power supplies, 2 current modes

Download datasheets and manufacturer documentation for Microchip HV7355K6-G.

Data Sheets:

e17256bffc0c59e053849aa60e2432e6.pdf

User Guide:

645a7ad4a2544282e205b12be14e0e36.pdf

HV7355 is an eight-channel, unipolar, high voltage, high-speed pulse generator. It is designed for medical ultrasound applications. This high voltage and high speed integrated circuit can also be used for other piezoelectric, capacitive or MEMS sensors in ultrasonic nondestructive detection and sonar ranger applications. The HV7355 consists of a controller logic interface circuit, level translators, MOSFET gate drivers and high current P-channel and N-channel MOSFETs as the output stage for each channel. The output stages of each channel are designed to provide peak output currents over ±1.5A for pulsing, when MC = 1, with up to 150V swings. When MC = 0, all the output stages drop the peak current to ±500mA for low-voltage CW mode operation to save power. This direct coupling topology of the gate driver not only saves one high voltage capacitor per channel, but also makes the PCB layout easier.

HVCMOS technology for high performance
High density integrated ultrasound transmitter
0 to +150V output voltage
±1.5A source and sink current (min.)
±300mA current in CW mode
Up to 18MHz operating frequency
Matched delay times
Built-in gate driver floating voltage regulator
2.5 to 3.3V CMOS logic interface

User Guide
