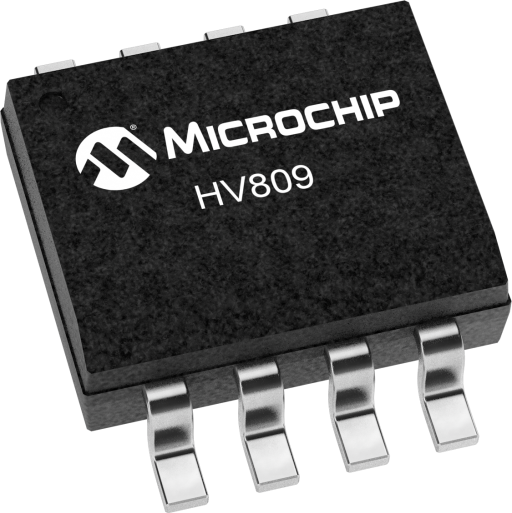

Microchip HV809LG-G

Manufacturer No:

HV809LG-G

Manufacturer:

Microchip

Package:

8-SOIC (0.154, 3.90mm Width)

Description:

Offline Inductor Based Single Lamp EL Driver

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HV809LG-G information

Microchip HV809LG-G technical specifications, attributes, parameters and parts with similar specifications to Microchip HV809LG-G.

Type
Parameter

Type
Offline Driver

Input Voltage Low (V)
50

Input Voltage High (V)
200

Nominal Output Voltage (V)
±50 to ±200

Max Switch Resistance (Ω)
--

Output Regulation
--

Max Lamp Size per Device (in2)
100

Package
SOIC-8, SOIC-8 w/HS

Operating Iq (µA)
0

Frequency(EL, Typical)
320Hz - 480Hz

Oja (C/W)
101, 84

VOUT
400

Download datasheets and manufacturer documentation for Microchip HV809LG-G.

HV809 is an off-line, high voltage, EL lamp driver integrated circuit designed for driving EL lamps of up to 350nF at 400Hz. The input supply voltage can be a rectified nominal 120V AC source or any other DC source up to 200V. The HV809 will supply the EL lamp with an AC square wave with a peak-to-peak voltage of two times the input DC voltage. The HV809 has two internal oscillators, a low voltage output linear regulator, and a high voltage output H-bridge. The high voltage output H-bridge frequency is set by an external resistor connected between the REL-Osc and GND pins. The EL lamp is connected between pins VA and VB. For the HV809 in the 8-pin package, an external RC network can be connected between the oscillator’s Osc1 and Osc2 pins to pulse the EL lamp on and off. For detailed circuit and application information please refer to Application Note AN-H36.

Processed with HVCMOS® technology
Input voltage up to 200V DC
400V peak-to-peak output voltage
Output load up to 350nF (100in2 for 3.5nF/in2 lamp)
Adjustable output lamp frequency
Adjustable on/off pulsing frequency
