Samtec HTST-105-01-L-DV-P-TR

Manufacturer No:

HTST-105-01-L-DV-P-TR

Manufacturer:

Package:

Description:

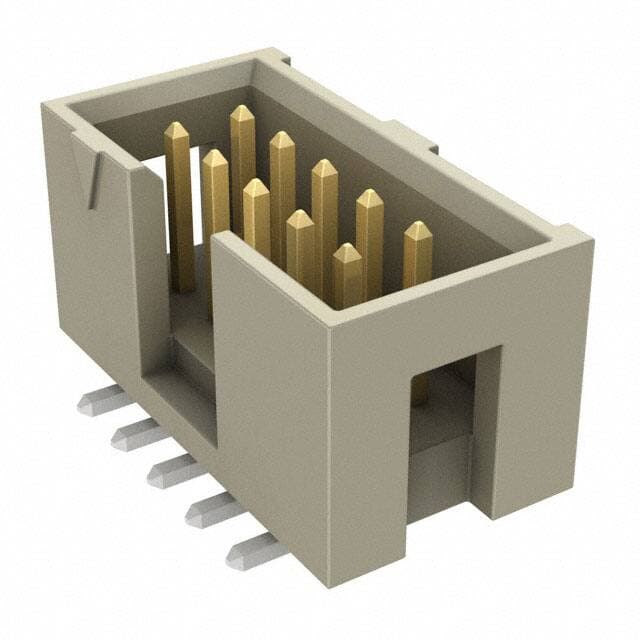

Flex Stack, HTST Series 2-Row Header Solder Phosphor Bronze Tape & Reel (TR) Surface Mount Gold Liquid Crystal Polymer (LCP) 10-Position Board to Cable/Wire 0.350 8.89mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HTST-105-01-L-DV-P-TR information

Samtec HTST-105-01-L-DV-P-TR technical specifications, attributes, parameters and parts with similar specifications to Samtec HTST-105-01-L-DV-P-TR.

Type
Parameter

Factory Lead Time
3 Weeks

Contact Material
Phosphor Bronze

Mounting Type
Surface Mount

Contact Shape
Square

Insulation Material
Liquid Crystal Polymer (LCP)

Housing Material
Polychlorinated

Mounting Option 1
GUIDE SLOT

Mounting Option 2
LOCKING

Operating Temperature
-55°C~125°C

Packaging
Tape & Reel (TR)

Series
Flex Stack, HTST

Published
2007

JESD-609 Code
e3

Feature
Keying Slot, Pick and Place

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Header

Number of Positions
10

Number of Rows
2

Gender
Male

HTS Code
8536.69.40.40

Contact Finish - Mating
Gold

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Option
GENERAL PURPOSE

Current Rating (Amps)
3.4A per Contact

Total Number of Contacts
10

Orientation
Straight

Depth
9.27mm

Insulation Height
0.350 8.89mm

Style
Board to Cable/Wire

Number of Positions Loaded
All

Pitch - Mating
0.100 2.54mm

Insulation Color
Natural

Number of Conductors
ONE

Reference Standard
UL

Reliability
COMMERCIAL

Row Spacing - Mating
0.100 (2.54mm)

Shrouding
Shrouded - 4 Wall

Number Of PCB Rows
2

Download datasheets and manufacturer documentation for Samtec HTST-105-01-L-DV-P-TR.

HTST-105-01-L-DV-P-TR Overview

Packaging is in the form of Header.This device has a Surface Mount mounting type.An orange Tape & Reel (TR) case is used to package the product.Specifically, it is one of the products in the Flex Stack, HTST Series.Several benefits come from the Keying Slot, Pick and Place feature.Devices operate at -55°C~125°C operating temperatures.
