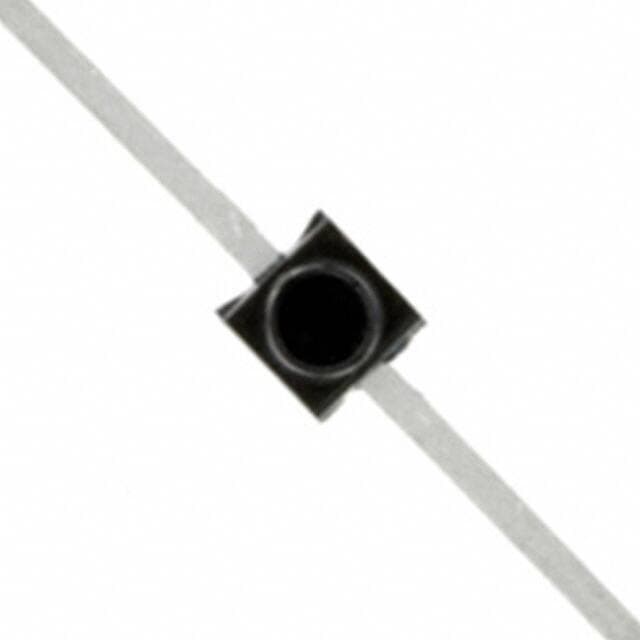

LITE-ON HSDL-5400
LITE-ON HSDL-5400

LITE-ON HSDL-5400

Manufacturer No:

HSDL-5400

Manufacturer:

LITE-ON

Package:

2-SMD, Flat Lead

Description:

Surface Mount -40°C~85°C Bulk Wavelength: 875nm 2-SMD, Flat Lead 0.15mm2 1nA

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HSDL-5400 information

LITE-ON HSDL-5400 technical specifications, attributes, parameters and parts with similar specifications to LITE-ON HSDL-5400.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Mount
  • Surface Mount, Through Hole
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 2-SMD, Flat Lead
  • Number of Pins
  • 2
  • Shape
  • ROUND
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Bulk
  • Series
  • HSDL-5400
  • Published
  • 2006
  • JESD-609 Code
  • e3
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 2A (4 Weeks)
  • Terminal Finish
  • TIN
  • HTS Code
  • 8541.40.60.50
  • Number of Functions
  • 1
  • Reach Compliance Code
  • unknown
  • Configuration
  • SINGLE
  • Diode Type
  • PIN
  • Power Dissipation
  • 150mW
  • Viewing Angle
  • 110°
  • Forward Current
  • 1mA
  • Size
  • 1.78mm
  • Rise Time
  • 7.5ns
  • Fall Time (Typ)
  • 7.5 ns
  • Max Reverse Voltage (DC)
  • 40V
  • Reverse Breakdown Voltage
  • 40V
  • Reverse Voltage
  • 40V
  • Wavelength
  • 875nm
  • Dark Current
  • 1nA
  • Spectral Range
  • 770nm ~ 1000nm
  • Active Area
  • 0.15mm2
  • Infrared Range
  • YES
  • Light Current-Nom
  • 0.0016mA
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for LITE-ON HSDL-5400.

Datasheets:

HSDL-5400 Overview


These photodiodes are packaged in the Bulk to protect them from damage. The photodiodes are put into 2-SMD, Flat Lead packages for safety protection. The voltage for the photodiodes should not exceed 40V in reverse-bias mode on a continual basis. The photodiodes have 2 pins. The photodiodes could release 150mW heat within a circuit. The reverse anode voltage for the photodiodes should be 40V. The voltage needed to get current to flow across a photodiode should be 800mV. In the reverse-bias mode, the photodiodes could supply 40V voltage. Even in the absence of light input, a photodiode occurs 1nA current.

HSDL-5400 Features


Moisture Sensitivity Level (MSL): 2A (4 Weeks)
Operating Temperature: -40°C~85°C
Packaging: Bulk
Diode Type: PIN
Mount: Surface Mount, Through Hole
Spectral Range: 770nm ~ 1000nm
Viewing Angle: 110°


HSDL-5400 Applications


There are a lot of Lite-On Inc.
HSDL-5400 Photodiodes applications.


  • High speed photo detector
  • Infrared remote control
  • Infrared data transmission
  • Photo interrupters
  • Shaft encoders
  • Electronic Equipment
  • Industrial Automation
  • Machine Controls
  • Light Barriers
  • Vision Controls

User Guide
