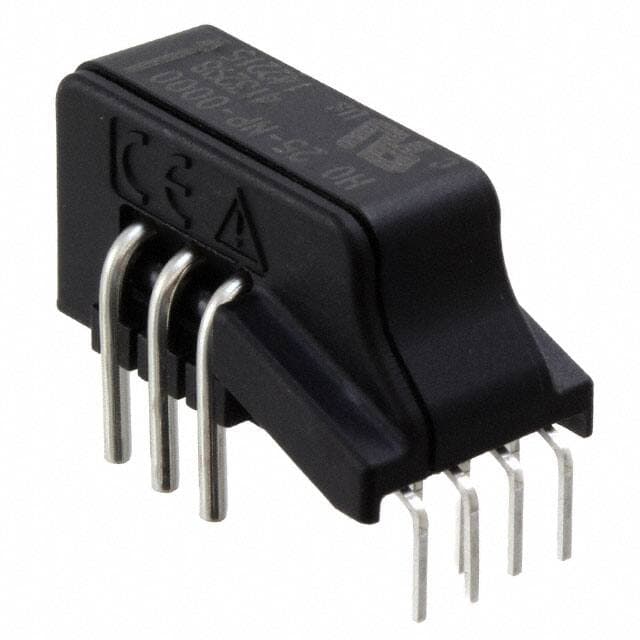

LEM HO 25-NP-0000

Manufacturer No:

HO 25-NP-0000

Manufacturer:

LEM

Package:

Module

Description:

HO-NP-0000 Series Hall Effect, Open Loop Sensor 1-Channel Bidirectional -40°C~105°C 5V DC~250kHz 25A Accuracy-±1% Linearity-±0.5%

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HO 25-NP-0000 information

LEM HO 25-NP-0000 technical specifications, attributes, parameters and parts with similar specifications to LEM HO 25-NP-0000.

Type
Parameter

Factory Lead Time
14 Weeks

Mounting Type
Through Hole

Package / Case
Module

Surface Mount
NO

Operating Temperature
-40°C~105°C

Packaging
Tray

Series
HO-NP-0000

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Number of Terminations
13

Voltage - Supply
5V

Terminal Position
UNSPECIFIED

Terminal Form
UNSPECIFIED

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
5V

Frequency
DC~250kHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Output
Ratiometric, Voltage

Current - Supply (Max)
25mA

Supply Voltage-Max (Vsup)
5.5V

Supply Voltage-Min (Vsup)
4.5V

Number of Channels
1

Analog IC - Other Type
ANALOG CIRCUIT

Accuracy
±1%

Response Time
3.5μs

Sensor Type
Hall Effect, Open Loop

Linearity
±0.5%

For Measuring
AC/DC

Current - Sensing
25A

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for LEM HO 25-NP-0000.

Datasheets:

lemusainc-ho15np0000-datasheets-2716.pdf

HO 25-NP-0000 Overview

Safety precautions are taken by putting the current sensors in Module packages. The current sensors are enclosed in the Tray to prevent them from being damaged. These current sensors should supply 25mA current at their maximum. There are no terminations on the current sensors. During operation, these sensors can provide a voltage of 5V. ldeally, current sensors should supply 4.5V voltage. Current sensors should, however, not exceed 5.5V in voltage.

HO 25-NP-0000 Features

Moisture Sensitivity Level: Not Applicable
Operating Temperature: -40°C~105°C
1 Channels
Mounting Type: Through Hole
Sensor Type: Hall Effect, Open Loop
Supply Voltage: 5V
Frequency: DC~250kHz
Sensing Current: 25A
Module Package

HO 25-NP-0000 Applications

There are a lot of LEM USA Inc.
HO 25-NP-0000 Current Sensors applications.

Closed-L oop DC- and AC-Current Sensor Modules
Leakage Current Sensors
Industrial Monitoring and Control Systems
Overcurrent Detection
Frequency, Voltage, and Solar Inverters
Electrical drives
General purpose inverters
AC variable speed drives
Static converters for DC motor drives
Battery supplied applications
