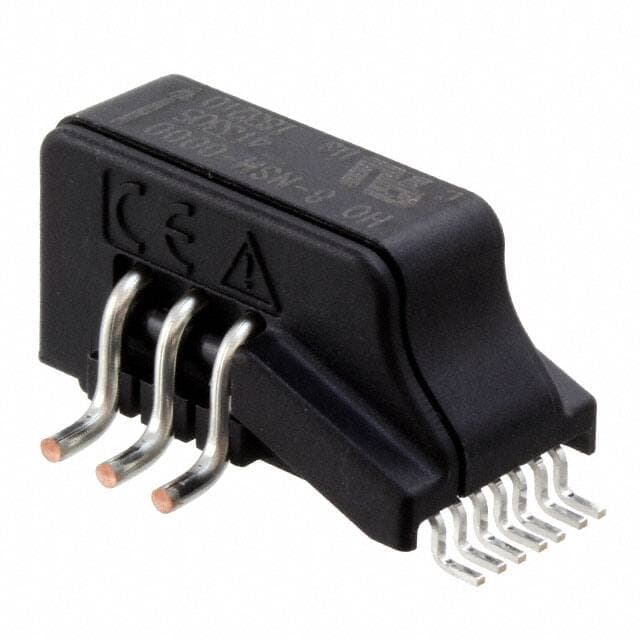

LEM HO 8-NSM/SP33-1000

Manufacturer No:

HO 8-NSM/SP33-1000

Manufacturer:

LEM

Package:

Module

Description:

HO-NSM-0000 Series Hall Effect, Open Loop Sensor 1-Channel Bidirectional -40°C~105°C 3.3V DC~250kHz 8A Accuracy-±1% Linearity-±0.5%

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HO 8-NSM/SP33-1000 information

LEM HO 8-NSM/SP33-1000 technical specifications, attributes, parameters and parts with similar specifications to LEM HO 8-NSM/SP33-1000.

Type
Parameter

Factory Lead Time
14 Weeks

Mounting Type
Surface Mount

Package / Case
Module

Operating Temperature
-40°C~105°C

Packaging
Tray

Series
HO-NSM-0000

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Voltage - Supply
3.3V

Frequency
DC~250kHz

Output
Ratiometric, Voltage

Current - Supply (Max)
25mA

Number of Channels
1

Polarization
Bidirectional

Accuracy
±1%

Response Time
3.5μs

Sensor Type
Hall Effect, Open Loop

Linearity
±0.5%

For Measuring
AC/DC

Current - Sensing
8A

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for LEM HO 8-NSM/SP33-1000.

Datasheets:

lemusainc-ho25nsmsp331000-datasheets-2197.pdf

lemusainc-hlsr50psp33-datasheets-1969.pdf

HO 8-NSM/SP33-1000 Overview

The current sensors are put into Module packages for safety protection. These current sensors are packaged in the Tray to protect the devices from damage. The maximum current supplied by these current sensors should be 25mA.

HO 8-NSM/SP33-1000 Features

Moisture Sensitivity Level: Not Applicable
Operating Temperature: -40°C~105°C
1 Channels
Mounting Type: Surface Mount
Sensor Type: Hall Effect, Open Loop
Supply Voltage: 3.3V
Frequency: DC~250kHz
Sensing Current: 8A
Module Package

HO 8-NSM/SP33-1000 Applications

There are a lot of LEM USA Inc.
HO 8-NSM/SP33-1000 Current Sensors applications.

Motor and load control
Inverter and H-bridge current measurements
Power factor correction
Overcurrent protection
DC and AC power monitoring
Closed-L oop DC- and AC-Current Sensor Modules
Leakage Current Sensors
Industrial Monitoring and Control Systems
Overcurrent Detection
Frequency, Voltage, and Solar Inverters
