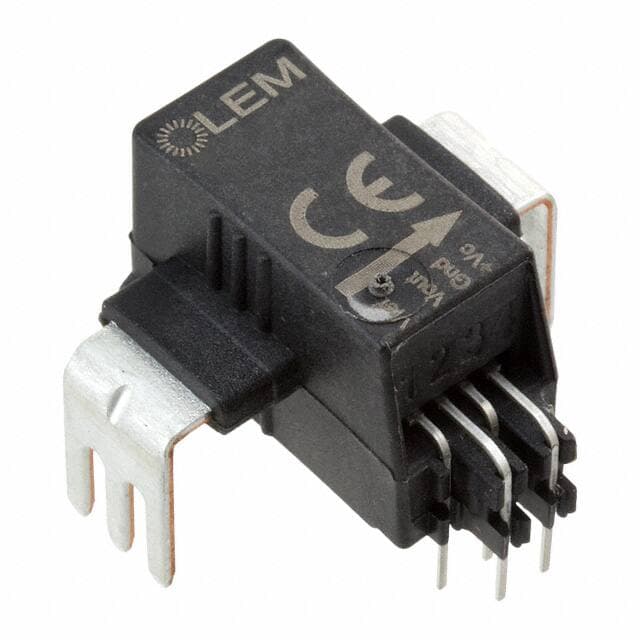

LEM HLSR 50-P

Manufacturer No:

HLSR 50-P

Manufacturer:

LEM

Package:

Module

Description:

HLSR-P Series Hall Effect, Open Loop Sensor 1-Channel Bidirectional -40°C~105°C 5V 400kHz 50A Accuracy-±1% Linearity-±0.5%

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HLSR 50-P information

LEM HLSR 50-P technical specifications, attributes, parameters and parts with similar specifications to LEM HLSR 50-P.

Type
Parameter

Factory Lead Time
14 Weeks

Mounting Type
Through Hole

Package / Case
Module

Surface Mount
NO

Operating Temperature
-40°C~105°C

Packaging
Tray

Series
HLSR-P

Published
2004

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Number of Terminations
10

Voltage - Supply
5V

Terminal Position
UNSPECIFIED

Terminal Form
UNSPECIFIED

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
5V

Frequency
400kHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Output
Ratiometric, Voltage

Current - Supply (Max)
25mA

Supply Voltage-Max (Vsup)
5.5V

Supply Voltage-Min (Vsup)
4.5V

Number of Channels
1

Polarization
Bidirectional

Accuracy
±1%

Response Time
2.5?s

Sensor Type
Hall Effect, Open Loop

Linearity
±0.5%

Sensitivity
16mV/A

For Measuring
AC/DC

Current - Sensing
50A

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for LEM HLSR 50-P.

Datasheets:

lemusainc-hlsr10p-datasheets-2025.pdf

lemusainc-hlsr50psp33-datasheets-1969.pdf

HLSR 50-P Overview

Safety precautions are taken by putting the current sensors in Module packages. The current sensors are enclosed in the Tray to prevent them from being damaged. These current sensors should supply 25mA current at their maximum. There are no terminations on the current sensors. During operation, these sensors can provide a voltage of 5V. ldeally, current sensors should supply 4.5V voltage. Current sensors should, however, not exceed 5.5V in voltage.

HLSR 50-P Features

Moisture Sensitivity Level: Not Applicable
Operating Temperature: -40°C~105°C
1 Channels
Mounting Type: Through Hole
Sensor Type: Hall Effect, Open Loop
Supply Voltage: 5V
Frequency: 400kHz
Sensing Current: 50A
Module Package

HLSR 50-P Applications

There are a lot of LEM USA Inc.
HLSR 50-P Current Sensors applications.

Closed-L oop DC- and AC-Current Sensor Modules
Leakage Current Sensors
Industrial Monitoring and Control Systems
Overcurrent Detection
Frequency, Voltage, and Solar Inverters
Electrical drives
General purpose inverters
AC variable speed drives
Static converters for DC motor drives
Battery supplied applications

User Guide
