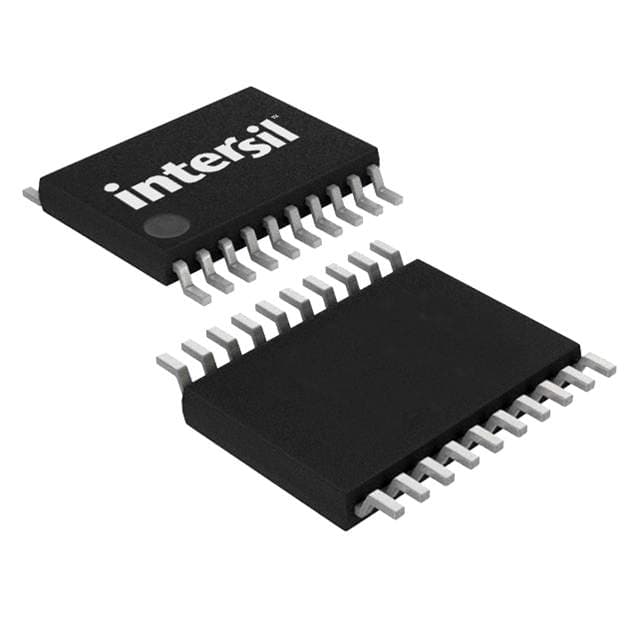

Renesas HIP6004BCVZA

Manufacturer No:

HIP6004BCVZA

Manufacturer:

Renesas

Package:

TSSOP

Description:

3.5V 260 Cel DUAL Specialized Voltage Regulator 20 Terminations TSSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HIP6004BCVZA information

Renesas HIP6004BCVZA technical specifications, attributes, parameters and parts with similar specifications to Renesas HIP6004BCVZA.

Type
Parameter

Mount
Surface Mount

Package / Case
TSSOP

Number of Pins
20

Published
1999

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
20

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
30

Number of Outputs
1

Qualification Status
Not Qualified

Operating Supply Voltage
12V

Input Voltage-Nom
12V

Temperature Grade
COMMERCIAL

Analog IC - Other Type
SWITCHING CONTROLLER

Voltage - Output
3.5V

Control Mode
VOLTAGE-MODE

Frequency - Switching
1MHz

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
PUSH-PULL

Max Duty Cycle
100 %

Length
6.5mm

Width
4.4mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas HIP6004BCVZA.

Datasheets:

intersil-hip6004bcvza-datasheets-1488.pdf

HIP6004BCVZA Overview

There are a total of 1 outputs supported by the voltage regulator. The rectifier regulator is packaged in TSSOP for ease of transportation. The general voltage output of this power supply regulator is 3.5V. It is possible to find 20terminals on the voltage regulator. This electronic part is highly regarded as a SWITCHING CONTROLLER regulator. A Surface Mount is provided for mounting on PCBs or other boards. There are 20 pins on the power regulator. It is not suitable for temperatures below 0°C. It is not recommended to exceed 70°C in temperature. The operating supply voltage for normal operation should be 12V. The switching frequency of this AC voltage regulator is 1MHz.

HIP6004BCVZA Features

SWITCHING CONTROLLER analog IC
Supply voltage: 12V
Switching at 1MHz

HIP6004BCVZA Applications

There are a lot of Intersil (Renesas Electronics America)
HIP6004BCVZA Specialized Voltage Regulators applications.

Notebook/Desktop/Server
Telecom/Datacom
GSM Base Station
LCD-TV/PDP-TV
Copier/Printer
Set-Top Box
DDR Vooo and V? Voltage Generation
PC Dual Power Supply
Server DDR Power
Desktop Computer
