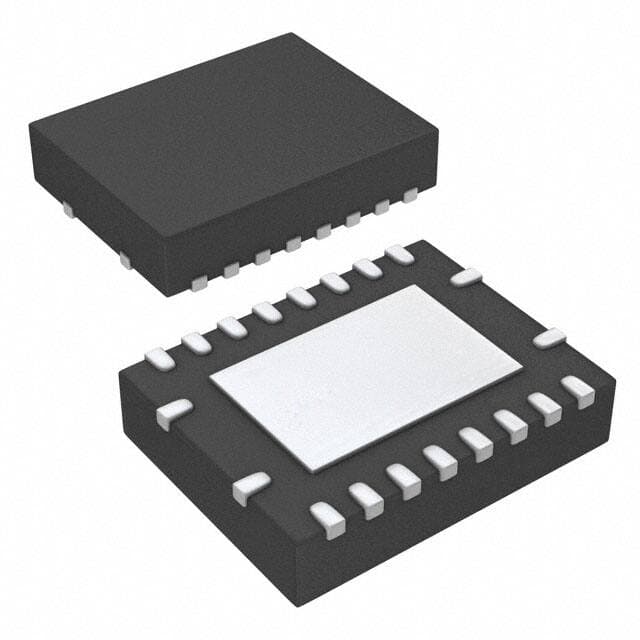

TI SN74AUCH240RGYR

Manufacturer No:

SN74AUCH240RGYR

Manufacturer:

Package:

20-VFQFN Exposed Pad

Description:

QUAD Buffer, Inverting 0.8V~2.7V 3-State Buffers 74AUCH Series 74AUCH240 20 Pins 4 Bit per Element 9mA 9mA 20-VFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SN74AUCH240RGYR information

TI SN74AUCH240RGYR technical specifications, attributes, parameters and parts with similar specifications to TI SN74AUCH240RGYR.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
20-VFQFN Exposed Pad

Number of Pins
20

Operating Temperature
-40°C~85°C TA

Packaging
Cut Tape (CT)

Series
74AUCH

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
20

Subcategory
Bus Driver/Transceivers

Packing Method
TAPE AND REEL

Technology
CMOS

Voltage - Supply
0.8V~2.7V

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
1.2V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
74AUCH240

Pin Count
20

Qualification Status
Not Qualified

Number of Elements
2

Polarity
Inverting

Load Capacitance
15pF

Number of Ports
2

Propagation Delay
1.6 ns

Quiescent Current
20?A

Turn On Delay Time
1.6 ns

Family
AUC

Logic Function
Buffer, Inverter

Current - Output High, Low
9mA 9mA

Logic Type
Buffer, Inverting

Max I(ol)
0.005 A

Number of Gates
8

Number of Bits per Element
4

Prop. Delay@Nom-Sup
3.3 ns

Control Type
ENABLE LOW

Height Seated (Max)
1mm

Width
3.5mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for TI SN74AUCH240RGYR.

Datasheets:

texasinstruments-sn74auch240rgyr-datasheets-8603.pdf

SN74AUCH240RGYR Overview

Using a 20-VFQFN Exposed Pad package makes it very easy to use. As you can see, this voltage buffer is packaged externally in the Cut Tape (CT) package. In addition to this, this digital buffer can also be mounted on the Surface Mount mount. In this case, we have a typical Buffer, Inverting logic integrated circuit that has a wide range of applications. There is a 0.8V~2.7V supply voltage applied to this network transceiver during the manufacturing process. The logical driver is qualified for operation at -40°C~85°C TA. Buffer IC has 9mA 9mA logic state output currents in high and low logic states. In total, bus transceiver can handle 3-State outputs. Transceiver utilizes all 2 elements. Network transceivers in the 74AUCH series include this one. There are 20 terminations on this ethernet transceiver, all of which perform different functions. 1.2V is required for its operation. This logical driver is a member of the AUC family. The electric component has 20 pins. A total of Surface Mount applications can be accommodated by logical driver. A total of 20 pins are present on digital buffer. With 2 ports, this logic device is enhanced. For each element, 4 bits are used. There are other related electronic parts on 74AUCH240 that you can find. The type of Bus Driver/Transceivers buffer is is specifically Bus Driver/Transceivers. During quiescence, the electronic part uses 20?A. TAPE AND REEL packages are generally sold. It consists of 8 logic gates, which operate logically. Using ENABLE LOW control technology, the voltage buffer begins to operate.

SN74AUCH240RGYR Features

Bus Driver/Transceivers
8 Logic Gates

SN74AUCH240RGYR Applications

There are a lot of Texas Instruments
SN74AUCH240RGYR Buffers & Transceivers applications.

Satellite communications networks
Ethernet circuitry
Wired telephone
Cordless telephone
Desktop PC
Notebook
Pocket PC
Desktop radio
Clock radio
Tuner
