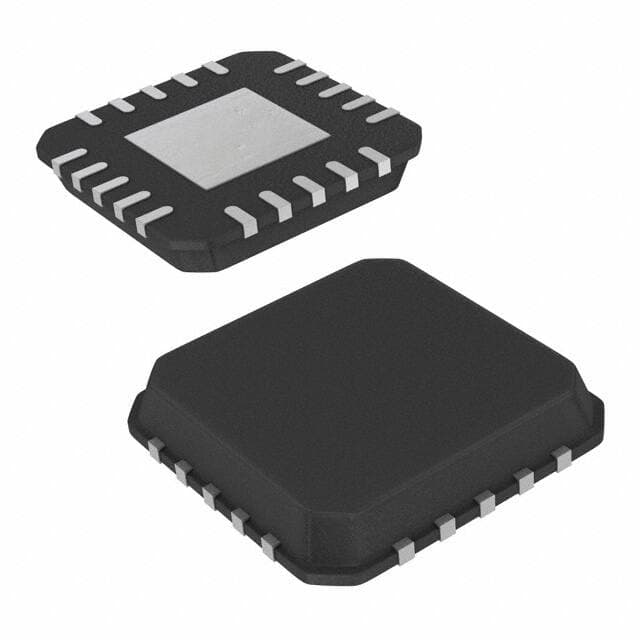

Renesas HIP6004BCR-T

Manufacturer No:

HIP6004BCR-T

Manufacturer:

Renesas

Package:

20-VQFN Exposed Pad

Description:

Controller, Intel Pentium®, II, Pro 1.3V~3.5V QUAD Specialized Voltage Regulator 0°C~70°C HIP6004B 20 Terminations 20-VQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HIP6004BCR-T information

Renesas HIP6004BCR-T technical specifications, attributes, parameters and parts with similar specifications to Renesas HIP6004BCR-T.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
20-VQFN Exposed Pad

Surface Mount
YES

Operating Temperature
0°C~70°C

Packaging
Tape & Reel (TR)

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
20

Applications
Controller, Intel Pentium®, II, Pro

Terminal Position
QUAD

Terminal Form
NO LEAD

Number of Functions
1

Terminal Pitch
0.65mm

Base Part Number
HIP6004B

JESD-30 Code
S-PQCC-N20

Number of Outputs
1

Input Voltage-Nom
12V

Analog IC - Other Type
SWITCHING CONTROLLER

Voltage - Input
5V 12V

Voltage - Output
1.3V~3.5V

Control Mode
VOLTAGE-MODE

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
BUCK

Switching Frequency-Max
200kHz

Width
5mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas HIP6004BCR-T.

Datasheets:

renesaselectronicsamericainc-hip6004bcbza-datasheets-2516.pdf

HIP6004BCR-T Overview

A total of 1outputs are supported by this voltage regulator. The rectifier regulator is packaged in 20-VQFN Exposed Pad to facilitate transportation. We are ready to ship in Tape & Reel (TR) packages. An output voltage of 1.3V~3.5V is provided by this power supply regulator. For easy adaptability, there is a universal mount Surface Mount. There are a number of applications targeted at Controller, Intel Pentium®, II, Pro. As a precaution, it is recommended to set the operating temperature to 0°C~70°C to prevent malfunctions. This external regulator requires a voltage input of 5V 12V. There are 20terminals on the voltage regulator. As a SWITCHING CONTROLLER regulator, the electronic part has received high praise. If you are looking for pin-to-pin solutions for a specific application, please search HIP6004B.

HIP6004BCR-T Features

Widely used in Controller, Intel Pentium®, II, Pro applications
SWITCHING CONTROLLER analog IC

HIP6004BCR-T Applications

There are a lot of Renesas Electronics America Inc.
HIP6004BCR-T Specialized Voltage Regulators applications.

GSM Base Station
LCD-TV/PDP-TV
Copier/Printer
Set-Top Box
DDR Vooo and V? Voltage Generation
PC Dual Power Supply
Server DDR Power
Desktop Computer
Graphics Cards
Cell Phones
