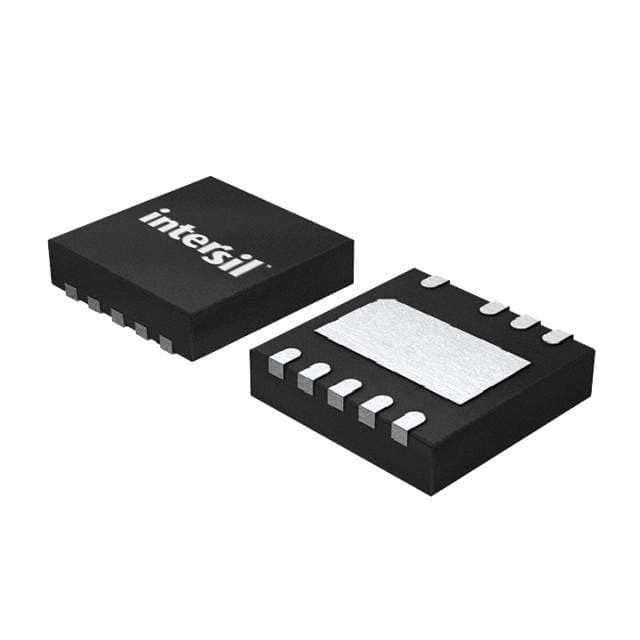

Renesas HIP2122FRTBZ-T

Manufacturer No:

HIP2122FRTBZ-T

Manufacturer:

Renesas

Package:

Description:

Active Gate Drivers ICs 2

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HIP2122FRTBZ-T information

Renesas HIP2122FRTBZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas HIP2122FRTBZ-T.

Type
Parameter

Mount
Surface Mount

Number of Pins
9

Published
2010

JESD-609 Code
e3

Part Status
Active

Number of Terminations
9

Terminal Finish
MATTE TIN

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Subcategory
MOSFET Drivers

Technology
CMOS

Terminal Position
QUAD

Number of Functions
1

Supply Voltage
12V

Terminal Pitch
0.8mm

Pin Count
9

Temperature Grade
AUTOMOTIVE

Max Supply Voltage
14V

Min Supply Voltage
8V

Power Dissipation-Max
3.1W

Nominal Supply Current
4mA

Max Supply Current
4mA

Current - Output
2A

Rise Time
600ns

Interface IC Type
HALF BRIDGE BASED MOSFET DRIVER

Number of Drivers
2

Turn On Time
60 µs

Output Peak Current Limit-Nom
2A

High Side Driver
YES

Turn Off Time
60 µs

Length
4mm

Height Seated (Max)
0.75mm

Width
4mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas HIP2122FRTBZ-T.

Datasheets:

intersil-hip2122frtbzt-datasheets-9880.pdf

intersil-hip2122frtbzt-datasheets-7722.pdf

HIP2122FRTBZ-T Overview

This device is equipped with 2 drivers for its configuration.It's configured with 9 terminations.The device is mounted with Surface Mount.There are 9 pins available in the device.Mosfet driver is designed specifically to run on 12V volts of power.The interface IC is referred to as HALF BRIDGE BASED MOSFET DRIVER.Mosfet driver includes a number of useful electronic components in Mosfet drivers subcategory of MOSFET Drivers.A board with 9 component pins is available.A maximum operating temperature of 125°C is permissible.There is a minimum operating temperature of -40°C.To increase stability, keep the supply current at 4mA.When the supply voltage is 14V, it is at its maximum operation.In order for the device to operate, a supply voltage of 8V must be applied.Mosfet gate drivers outputs a current of 2A at the moment.

HIP2122FRTBZ-T Features

2 drivers
9 pins

HIP2122FRTBZ-T Applications

There are a lot of Intersil (Renesas Electronics America)
HIP2122FRTBZ-T gate drivers applications.

Broadcast equipment
Active filtering
Head-up and Head mounted displays
High current laser/LED systems
LCD/LCoS/DLP portable and embedded pico projectors
Multicolor LED/laser displays
Smart Phones
Portable Navigation Devices
Portable Media Players
Motor Controls
