Manufacturer No:

CMQ82C55AZ

Manufacturer:

Renesas

Package:

QFP

Description:

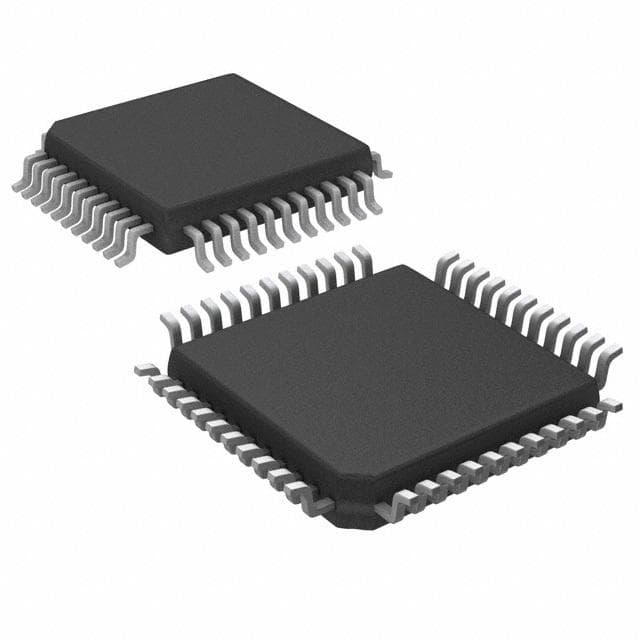

44 Termination 0.8mm 5V I/O Expander 44 Pin 5V QFP

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CMQ82C55AZ information

Renesas CMQ82C55AZ technical specifications, attributes, parameters and parts with similar specifications to Renesas CMQ82C55AZ.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Mount
  • Surface Mount
  • Package / Case
  • QFP
  • Number of Pins
  • 44
  • Packaging
  • Bulk
  • Published
  • 2005
  • JESD-609 Code
  • e3
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 44
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn) - annealed
  • Max Operating Temperature
  • 70°C
  • Min Operating Temperature
  • 0°C
  • HTS Code
  • 8542.39.00.01
  • Subcategory
  • Parallel IO Port
  • Technology
  • CMOS
  • Terminal Position
  • QUAD
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 260
  • Supply Voltage
  • 5V
  • Terminal Pitch
  • 0.8mm
  • Time@Peak Reflow Temperature-Max (s)
  • 30
  • Pin Count
  • 44
  • Supply Voltage-Max (Vsup)
  • 5.5V
  • Power Supplies
  • 5V
  • Temperature Grade
  • COMMERCIAL
  • Supply Voltage-Min (Vsup)
  • 4.5V
  • Number of I/O
  • 24
  • Number of Ports
  • 3
  • uPs/uCs/Peripheral ICs Type
  • PARALLEL IO PORT, GENERAL PURPOSE
  • Length
  • 10mm
  • Height Seated (Max)
  • 2.45mm
  • Width
  • 10mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Renesas CMQ82C55AZ.

Datasheets:

CMQ82C55AZ Overview


It is programmed with 24 I/Os.The device is enclosed in the packaging with the QFP.It is available in Bulk case.It has 44 terminations in total.The total pins on the part is 44.The device provides voltage at 5V.This part's peak reflow temperature is utilized to run 260.The device has a total of 3 ports.It can deliver the power at 5V.The device has 44 pins.The part can be mounted using Surface Mount.It belongs to the PARALLEL IO PORT, GENERAL PURPOSE uPs/uCs/Peripheral ICs Type.It belongs to Parallel IO Port series.The maximal operating temperature reaches 70°C.This device's minimum working temperature must not be less than 0°C.
