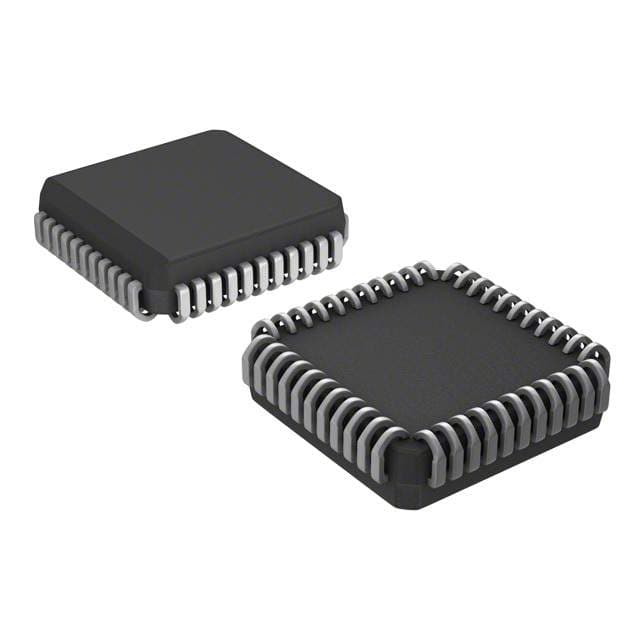

Renesas CS82C37A96

Manufacturer No:

CS82C37A96

Manufacturer:

Renesas

Package:

PLCC

Description:

1.27mm 5V Specialized Interface IC 44 Pin 5V PLCC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CS82C37A96 information

Renesas CS82C37A96 technical specifications, attributes, parameters and parts with similar specifications to Renesas CS82C37A96.

Type
Parameter

Mount
Surface Mount

Package / Case
PLCC

Number of Pins
44

Packaging
Tape and Reel

Published
1996

JESD-609 Code
e0

Pbfree Code
no

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
4 (72 Hours)

Number of Terminations
44

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

HTS Code
8542.31.00.01

Subcategory
DMA Controllers

Technology
CMOS

Terminal Position
QUAD

Terminal Form
J BEND

Peak Reflow Temperature (Cel)
225

Supply Voltage
5V

Terminal Pitch
1.27mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
44

Supply Voltage-Max (Vsup)
5.5V

Power Supplies
5V

Temperature Grade
COMMERCIAL

Supply Voltage-Min (Vsup)
4.5V

uPs/uCs/Peripheral ICs Type
DMA CONTROLLER

Clock Frequency
8MHz

Supply Current-Max
16mA

Address Bus Width
8

External Data Bus Width
8

Bus Compatibility
80C286; 80286; 80186; 80C86; 8086; 80C88; 8088; 8085; Z80; NSC800

Number of DMA Channels
4

Length
16.585mm

Height Seated (Max)
4.57mm

Width
16.585mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas CS82C37A96.

Datasheets:

intersil-cs82c37a96-datasheets-1792.pdf

CS82C37A96 Overview

The PLCC package is a good fit for this feature.It is packaged in a Tape and Reel case.It consists of 44 terminations.It is important to keep in mind that this device should be set to 5V.The device has a total of 44 pins.Operation is carried out using the 44 pins.The device is mounted by Surface Mount.A minimum working temperature of 0°C is required to ensure the reliability of the device.When the value is set to 70°C , the part will run consistently.Electronic components of the DMA Controllers family are used.There are DMA CONTROLLER uPs/uCs/Peripheral ICs integrated into this device.The device is capable of delivering voltage at 5V.Its output frequency should not exceed 8MHz in order to achieve optimal performance.
