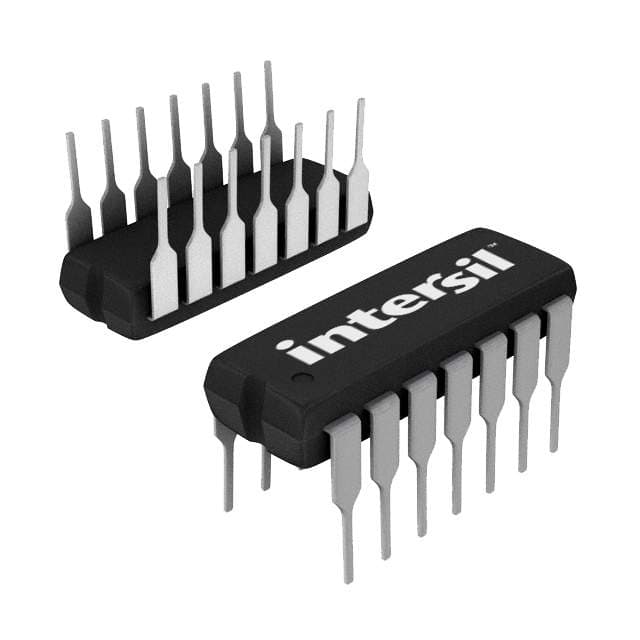

Renesas HI1-0303-5

Manufacturer No:

HI1-0303-5

Manufacturer:

Renesas

Package:

CDIP

Description:

Analog Switches BREAK-BEFORE-MAKE 14 Pins 15V CDIP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HI1-0303-5 information

Renesas HI1-0303-5 technical specifications, attributes, parameters and parts with similar specifications to Renesas HI1-0303-5.

Type
Parameter

Mount
Through Hole

Package / Case
CDIP

Number of Pins
14

Packaging
Bulk

Published
2004

JESD-609 Code
e0

Part Status
Discontinued

Number of Terminations
14

Resistance
50Ohm

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
75°C

Min Operating Temperature
0°C

Subcategory
Multiplexer or Switches

Technology
CMOS

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
2

Supply Voltage
15V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Output
SEPARATE OUTPUT

Pin Count
14

Qualification Status
Not Qualified

Power Supplies
+-15V

Temperature Grade
COMMERCIAL EXTENDED

Number of Channels
1

Number of Bits
2

Throw Configuration
SPDT

Turn On Delay Time
210 ns

Supply Type
Dual, Single

Neg Supply Voltage-Nom (Vsup)
-15V

Turn-Off Delay Time
160 ns

Off-state Isolation-Nom
60 dB

Switching
BREAK-BEFORE-MAKE

Switch-on Time-Max
300ns

Height Seated (Max)
5.08mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas HI1-0303-5.

Datasheets:

intersil-hi103035-datasheets-3449.pdf

HI1-0303-5 Overview

Due to its CDIP packaging, the electronic part is convenient for international shipping. High reliability is achieved by using advanced packaging method Bulk. A total of 14 terminations have been recorded. The electronic part delivers high-quality output through its 1 channels. Turning on and running the electrical part should be easy with a 15V voltage supply. Electronic part bodies are injected with 14 pins. Internally, this switch multiplexer has a resistance of 50Ohm. You can find the functions of the 14 pins in the datasheets. A analogue multiplexer of this type is a Multiplexer or Switches. Digital switch that provides Dual, Single power at a cost-effective price. The switch device would be able to operate with 90nA current. The digital multiplexer has SEPARATE OUTPUT outputs that can be used. Temperatures over 75°C should not be allowed for the multiplexer to operate. Its conductivity is 2-bit.

HI1-0303-5 Features

1 Channels
90nA Supply Current
2-Bit

HI1-0303-5 Applications

There are a lot of Intersil (Renesas Electronics America)
HI1-0303-5 Analog Switches & Multiplexers ICs applications.

Medical
Imaging
Ultrasound
Audio and video switching
Automatic test equipment
Precision data acquisition
Battery-powered systems
Sample-and-hold systems
Communication systems
Data Acquisition Systems
