Manufacturer No:

HEDS-5640#A06

Manufacturer:

BROADCOM

Package:

Metal

Description:

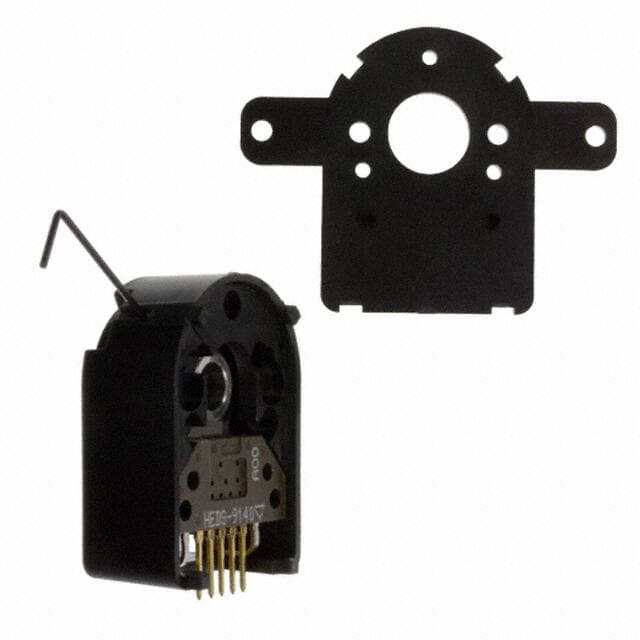

HEDS Optical Terminal Pins Chassis Mount, Motors 1/4 Open Center Pulses per Revolution:500 Vertical PC Pins ROTARY POSITION ENCODER

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HEDS-5640#A06 information

BROADCOM HEDS-5640#A06 technical specifications, attributes, parameters and parts with similar specifications to BROADCOM HEDS-5640#A06.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Mount
  • Chassis Mount
  • Mounting Type
  • Chassis Mount, Motors
  • Package / Case
  • Metal
  • Number of Pins
  • 10
  • Series
  • HEDS
  • Published
  • 2002
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • PC Pins
  • ECCN Code
  • EAR99
  • Max Operating Temperature
  • 100°C
  • Min Operating Temperature
  • -40°C
  • Orientation
  • Vertical
  • Number of Functions
  • 1
  • Termination Style
  • Terminal Pins
  • Actuator Type
  • 1/4 Open Center
  • Output Type
  • Quadrature with Index (Incremental)
  • Operating Supply Voltage
  • 5V
  • Number of Channels
  • 3
  • Optoelectronic Device Type
  • ROTARY POSITION ENCODER
  • Encoder Type
  • Optical
  • Detent
  • No
  • Pulses per Revolution
  • 500
  • Width
  • 52.1mm
  • REACH SVHC
  • No SVHC
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for BROADCOM HEDS-5640#A06.

Datasheets:

HEDS-5640#A06 Overview


The minimum operating temperature cannot be lower than -40°C to make sure encoder work normally. But the maximum operating temperature of this electronic part can reach 100°C. The encoders have 10 pins. We put the encoders into Metal packages to allow easy handling and to protect the devices from damage. The voltage level of the electrical power system is 5V for the encoder.

HEDS-5640#A06 Features


Series: HEDS
Package / Case: Metal
Termination: PC Pins
10 pins


HEDS-5640#A06 Applications


There are a lot of Broadcom Limited
HEDS-5640#A06 Encoders applications.


  • Audio-visual equipment
  • Consumer electric appliances
  • Musical instrumentation
  • Communications equipment
  • Printers
  • Plotters
  • Tape drives
  • Factory automation equipment
  • Global Positioning/Driver Information Systems
  • Medical Equipment
