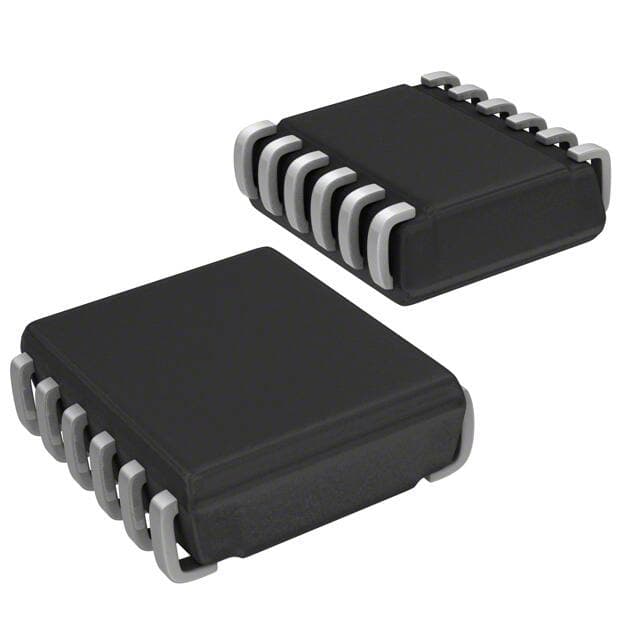

SKYWORKS AAT1230ITP-T1

Manufacturer No:

AAT1230ITP-T1

Manufacturer:

SKYWORKS

Package:

12-TFSOJ (0.094, 2.40mm Width)

Description:

2.7V 12-Pin DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs Up to 2MHz Tape & Reel (TR) 100mA 12-TFSOJ (0.094, 2.40mm Width)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AAT1230ITP-T1 information

SKYWORKS AAT1230ITP-T1 technical specifications, attributes, parameters and parts with similar specifications to SKYWORKS AAT1230ITP-T1.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
12-TFSOJ (0.094, 2.40mm Width)

Number of Pins
12

Operating Temperature
-40°C~150°C TJ

Packaging
Tape & Reel (TR)

Published
2012

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Function
Step-Up

Number of Outputs
1

Output Voltage
18V

Output Type
Adjustable

Operating Supply Voltage
5.5V

Voltage - Input (Min)
2.7V

Analog IC - Other Type
SWITCHING REGULATOR

Output Configuration
Positive

Current - Output
100mA

Output Power
625mW

Max Output Voltage
18V

Topology
Boost

Frequency - Switching
Up to 2MHz

Synchronous Rectifier
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for SKYWORKS AAT1230ITP-T1.

Datasheets:

skyworkssolutionsinc-aat1230itpt1-datasheets-7223.pdf

skyworkssolutions-aat1230itpt1-datasheets-1435.pdf

AAT1230ITP-T1 Overview

Using the Tape & Reel (TR) package, this voltage regulator optimizes the performance of the voltage regulator 12v. There is a SWITCHING REGULATOR type analog IC in this voltage regulator 12v that is used to convey analog signals. There is a 12-TFSOJ (0.094, 2.40mm Width) package available for this voltage regulator, as DC DC switching regulator is space-saving. 1 outputs have been configured in the voltage regulator 12v. On its output pins, this adjusting voltage regulator generates Adjustable output. Switching regulators like this one can be mounted on the Surface Mount mounting system. In order for it to operate properly, dc to dc voltage regulator's operating temperature should be at -40°C~150°C TJ. In this voltage regulator 12v, the switching frequency is Up to 2MHz. Regulator 2.7V can operate with dc to dc voltage regulator's minimum input voltage 2.7V. DC DC switching regulator's maximum design flexibility comes from its output current of 100mA. Voltage regulator is capable of giving voltage at 18V volts. In order to operate voltage regulator, 12 pins are required. This voltage regulator 12v should be configured with an output voltage that is at least 2.7V. Using this voltage regulator 12v, you will be able to get the maximum output voltage of 18V. With a supply voltage of 5.5V, this harley voltage regulator works.
