Adam Tech HDT26-ST
Adam Tech HDT26-ST

Adam Tech HDT26-ST

Manufacturer No:

HDT26-ST

Manufacturer:

Adam Tech

Package:

Description:

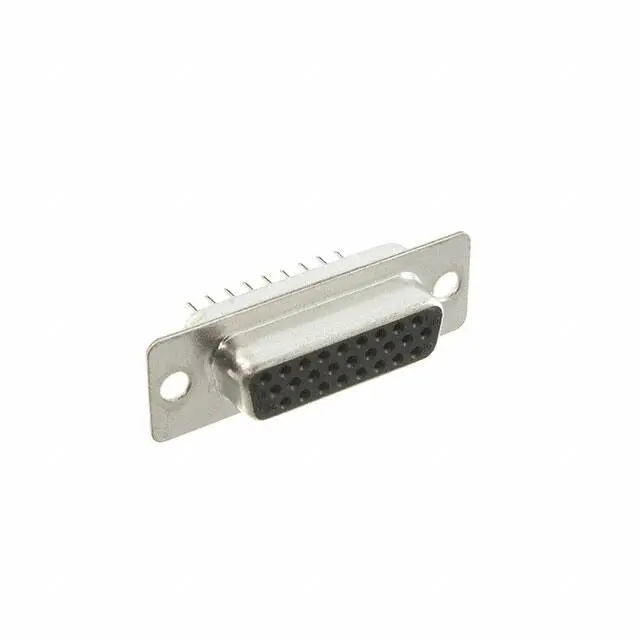

HDT Series D-Sub, High Density Receptacle, Female Sockets 26-Position Female Solder 2 DA A High Density Through Hole Copper Alloy Gold Steel, Tin Plated

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HDT26-ST information

Adam Tech HDT26-ST technical specifications, attributes, parameters and parts with similar specifications to Adam Tech HDT26-ST.

  • Type
  • Parameter
  • Factory Lead Time
  • 9 Weeks
  • Contact Material
  • Copper Alloy
  • Mounting Type
  • Through Hole
  • Insulation Material
  • GLASS FILLED POLYBUTYLENE TEREPHTHALATE
  • Dielectric Material
  • Polybutylene Terephthalate (PBT), Glass Filled
  • Mounting Option 1
  • #4-40
  • Shell Material, Finish
  • Steel, Tin Plated
  • Mounting Option 2
  • RIVET & JACKSCREW
  • Packaging
  • Tray
  • Series
  • HDT
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Receptacle, Female Sockets
  • Number of Positions
  • 26
  • Color
  • Black
  • Number of Rows
  • 3
  • Gender
  • Female
  • Voltage - Rated
  • 250VAC
  • Additional Feature
  • ROHS COMPLIANT
  • Subcategory
  • D Type Connectors
  • Current Rating (Amps)
  • 3A
  • Total Number of Contacts
  • 26
  • Terminal Pitch
  • 2.286mm
  • Shell Finish
  • TIN
  • Reference Standard
  • UL, CSA
  • Contact Finish
  • Gold
  • Reliability
  • COMMERCIAL
  • Body Length or Diameter
  • 1.541 inch
  • Number Of PCB Rows
  • 3
  • PCB Contact Pattern
  • STAGGERED
  • Operating Temperature (Max)
  • 125°C
  • Body Breadth
  • 0.494 inch
  • Operating Temperature (Min)
  • -65°C
  • Contact Style
  • RND PIN-SKT
  • Contact Resistance
  • 20mOhm
  • Insulation Resistance
  • 1000000000Ohm
  • Flange Feature
  • Housing/Shell (Unthreaded)
  • Plating
  • Steel, Tin
  • Dielectric Withstanding Voltage
  • 1000VAC V
  • Connector Style
  • D-Sub, High Density
  • PCB Contact Row Spacing
  • 1.9812 mm
  • Contact Pattern
  • STAGGERED
  • Mating Contact Row Spacing
  • 0.078 inch
  • Shell Size, Connector Layout
  • 2 DA A High Density
  • Contact Finish Thickness
  • Flash
  • Length - Termination
  • 0.169 inch

Download datasheets and manufacturer documentation for Adam Tech HDT26-ST.

HDT26-ST Overview


Currently, it is packaged in Receptacle, Female Sockets.Through Hole is the mounting type for the device.The product is packaged in a Tray case.It's part of the HDT Series.In addition, there are other features, such as ROHS COMPLIANT, to mention just a few.

HDT26-ST Features


HDT series


HDT26-ST Applications


There are a lot of Adam Tech
HDT26-ST D-Sub Connectors applications.


  • Industrial Automation
  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
