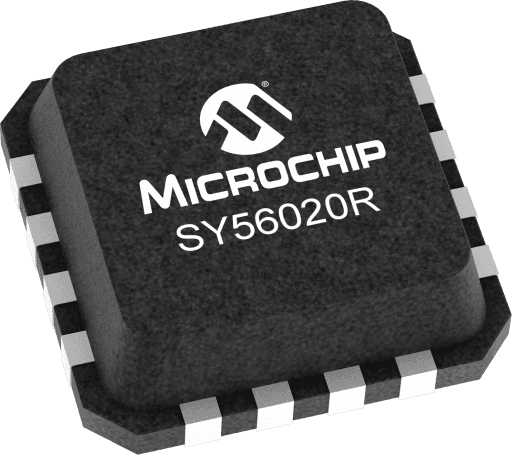

Microchip SY56020RMG
Microchip SY56020RMG

Microchip SY56020RMG

Manufacturer No:

SY56020RMG

Manufacturer:

Microchip

Package:

16-VFQFN Exposed Pad, 16-MLF®

Description:

1.2/1.8/2.5V LV CML 1:4 Fanout w/ Equalization

User Guide

Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.

PURCHASE

Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.

MEANS OF PAYMENT

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.

RFQ (REQUEST FOR QUOTATIONS)

Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.

IMPORTANT NOTICE

Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

Step1：Prepare product

Step1：Prepare product

Step2：Desiccant Protection

Step2：Desiccant Protection

Step3：Vacuum Packaging

Step3：Vacuum Packaging

Step4：Individual Package

Step4：Individual Package

Step5：Anti-collision Filling

Step5：Anti-collision Filling

Step6：Packaging Box

Step6：Packaging Box

SHIPPING COST

1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.

SHIPPING METHOD

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

DELIVERY TIME

1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.

SY56020RMG Information

Microchip SY56020RMG technical specifications, attributes, parameters and parts with similar specifications to Microchip SY56020RMG.

  • Type
  • Parameter
  • Description
  • 1:04
  • Input
  • ANY
  • Output
  • CML
  • Supply Voltage
  • 2.5
  • Max Freq (GHz)
  • 4.5
  • Icc (mA)
  • 60
  • Max Within Device Skew (ps)
  • 15
  • OE
  • True
  • Input Mux
  • False
  • Number Of Outputs
  • 0
  • Type
  • Parameter
  • Buffer Type
  • Fanout
  • Fanout
  • 1:4
  • Max Prop Delay (ps)
  • 280

Download datasheets and manufacturer documentation for Microchip SY56020RMG.

Data Sheets:

User Guide:

The SY56020R is a fully-differential, low-voltage 1.2V/1.8V/2.5V CML 1:4 Fanout Buffer with input equalization. The SY56020R can process clock signals as fast as 4.5GHz or data patterns up to 6.4Gbps.The differential input includes Micrel's unique, 3-pin input termination architecture that interfaces to CML differential signals, without any level-shifting or termination resistor networks in the signal path. The differential input can also accept AC-coupled LVPECL and LVDS signals. Input voltages as small as 200mV (400mVpp) are applied before the 9", 18", or 27" FR4 transmission line. For AC-coupled input interface applications, an internal voltage reference is provided to bias the VT pin. The outputs are CML, with extremely fast rise/fall times guaranteed to be less than 90ps.The SY56020R operates from a 2.5V ±5% core supply and a 1.2V, 1.8V or 2.5V ±5% output supply and is guaranteed over the full industrial temperature range (-40°C to +85°C). The SY56020R is part of Micrel's high-speed, Precision Edge® product line.

    • 1.2V/1.8V/2.5V CML 1:4 Fanout Buffer
    • Equalizes 9, 18, 27 inches of FR4
    • DC-to >6.4Gbps Data throughput
    • DC-to >4.5GHz Clock throughput
    • <280 ps propagation delay (IN-to-Q)
    • <15ps within-device skew
    • <90ps rise/fall times
    • <1psRMS random jitter
    • High-speed CML outputs
    • 2.5V ±5% VCC , 1.2/1.8V/2.5V ±5% VCCO power supply operation
    • Industrial temperature range: -40°C to +85°C
    • Available in 16-pin (3mm x 3mm) QFN package
