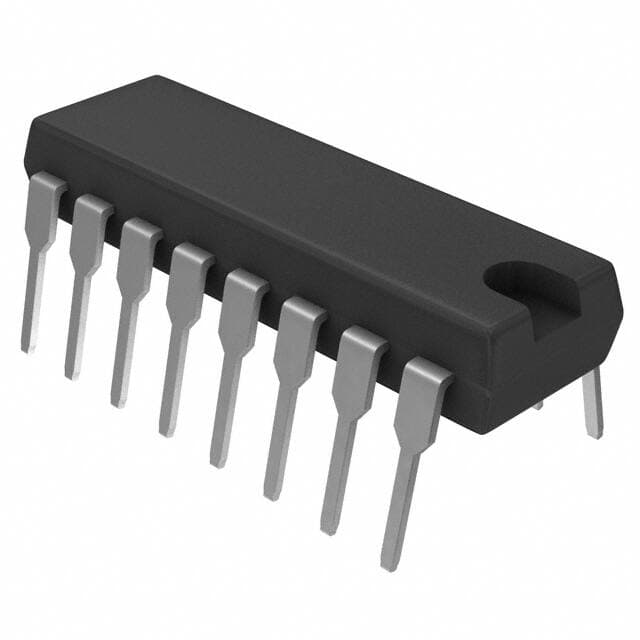

Manufacturer No:

HCF4049UBEY

Manufacturer:

ST

Package:

16-DIP (0.300, 7.62mm)

Description:

3/15V V 120 ns ns 120 ns ns 20mm mm Gates & Inverters 5.1mm mm 4.535924g mg Through Hole Surface Mount 3V~20V V 20?A ?A

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HCF4049UBEY information

ST HCF4049UBEY technical specifications, attributes, parameters and parts with similar specifications to ST HCF4049UBEY.

  • Type
  • Parameter
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • 16-DIP (0.300, 7.62mm)
  • Number of Pins
  • 16
  • Weight
  • 4.535924g
  • Operating Temperature
  • -55°C~125°C
  • Packaging
  • Tube
  • Series
  • 4000B
  • JESD-609 Code
  • e4
  • Pbfree Code
  • yes
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 16
  • Terminal Finish
  • Nickel/Palladium/Gold (Ni/Pd/Au)
  • Additional Feature
  • HIGH TO LOW LEVEL TRANSLATOR
  • HTS Code
  • 8542.39.00.01
  • Subcategory
  • Gates
  • Max Power Dissipation
  • 200mW
  • Technology
  • CMOS
  • Voltage - Supply
  • 3V~20V
  • Terminal Position
  • DUAL
  • Number of Functions
  • 6
  • Supply Voltage
  • 5V
  • Terminal Pitch
  • 2.54mm
  • Pin Count
  • 16
  • Number of Outputs
  • 6
  • Polarity
  • Inverting
  • Supply Voltage-Max (Vsup)
  • 20V
  • Power Supplies
  • 3/15V
  • Supply Voltage-Min (Vsup)
  • 3V
  • Number of Channels
  • 6
  • Load Capacitance
  • 50pF
  • Power Dissipation
  • 200mW
  • Propagation Delay
  • 120 ns
  • Quiescent Current
  • 20?A
  • Turn On Delay Time
  • 120 ns
  • Family
  • 4000/14000/40000
  • Logic Function
  • Buffer, Inverter
  • Current - Output High, Low
  • 12mA 48mA
  • Logic Type
  • Inverter
  • Max Propagation Delay @ V, Max CL
  • 50ns @ 15V, 50pF
  • Input Capacitance
  • 5pF
  • Schmitt Trigger
  • NO
  • Logic Level - Low
  • 1V ~ 3V
  • Logic Level - High
  • 4V ~ 12V
  • Height
  • 5.1mm
  • Length
  • 20mm

Download datasheets and manufacturer documentation for ST HCF4049UBEY.

Datasheets:

HCF4049UBEY Description


HCF4049UBEY, manufactured by STMicroelectronics and distributed by Utmel Electronics. It's category belong to Electronic Components ICs. It is applied to many fields, like Automotive Infotainment & cluster Industrial Power delivery Personal electronics Gaming. And the main parameters of this part is: Buffer-inverting; DIP; -0.5 to +22V; 200MW; -6.4 ma (typ.) @ 25C Drive O/p. Additionally, it is green and compliant to RoHS (Lead free / RoHS Compliant).
