ST TN1515-600B-TR
ST TN1515-600B-TR

ST TN1515-600B-TR

Manufacturer No:

TN1515-600B-TR

Manufacturer:

ST

Package:

ROHS COMPLIANT, PLASTIC, DPAK-3

Description:

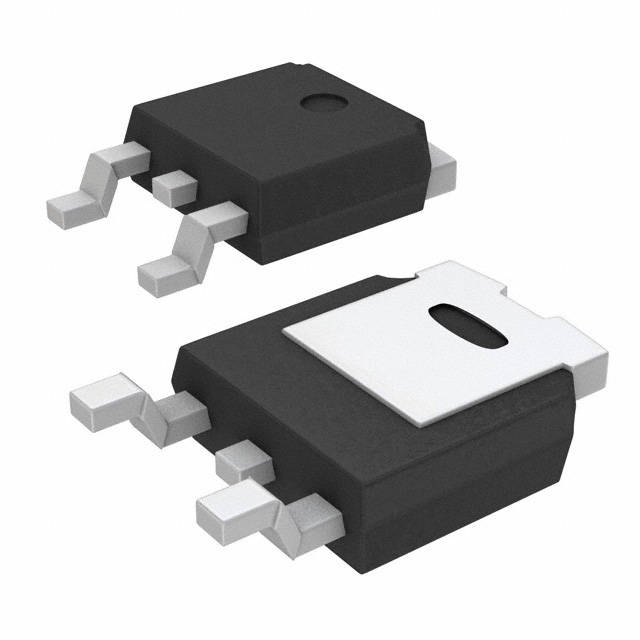

15 A 600 V standard SCR Thyristor in DPAK

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TN1515-600B-TR information

ST TN1515-600B-TR technical specifications, attributes, parameters and parts with similar specifications to ST TN1515-600B-TR.

  • Type
  • Parameter
  • RoHS Status
  • RoHS Compliant
  • Part Life Cycle Code
  • Active
  • Ihs Manufacturer
  • STMICROELECTRONICS
  • Part Package Code
  • TO-252
  • Package Description
  • ROHS COMPLIANT, PLASTIC, DPAK-3
  • Pin Count
  • 3
  • Reach Compliance Code
  • not_compliant
  • ECCN Code
  • EAR99
  • HTS Code
  • 8541.30.00.80
  • Samacsys Manufacturer
  • STMicroelectronics
  • Case Connection
  • ANODE
  • Configuration
  • SINGLE
  • Critical Rate of Rise of Off-State Voltage-Min
  • 200 V/us
  • DC Gate Trigger Current-Max
  • 15 mA
  • DC Gate Trigger Voltage-Max
  • 1.3 V
  • Holding Current-Max
  • 40 mA
  • JESD-30 Code
  • R-PSSO-G2
  • JESD-609 Code
  • e3
  • Leakage Current-Max
  • 0.005 mA
  • Moisture Sensitivity Level
  • 1
  • Non-Repetitive Pk On-state Cur
  • 165 A
  • Number of Elements
  • 1
  • Number of Terminals
  • 2
  • On-state Current-Max
  • 15000 A
  • Operating Temperature-Min
  • -40 °C
  • Package Body Material
  • PLASTIC/EPOXY
  • Package Shape
  • RECTANGULAR
  • Package Style
  • SMALL OUTLINE
  • Peak Reflow Temperature (Cel)
  • 260
  • Qualification Status
  • Not Qualified
  • RMS On-state Current-Max
  • 15 A
  • Repetitive Peak Off-state Voltage
  • 600 V
  • Repetitive Peak Reverse Voltage
  • 600 V
  • Surface Mount
  • YES
  • Terminal Finish
  • Matte Tin (Sn) - annealed
  • Terminal Form
  • GULL WING
  • Terminal Position
  • SINGLE
  • Time@Peak Reflow Temperature-Max (s)
  • 30
  • Trigger Device Type
  • SCR

Download datasheets and manufacturer documentation for ST TN1515-600B-TR.

Datasheets:

TN1515-600B-TR Overview


The RMS current describes the current's average strength, disregarding its direction, and its RMS current (Irms) is 15A.Maximum repetitive reverse voltage is the maximum amount of voltage the diode can withstand in reverse-bias mode, , and this device's maximal repetitive reverse voltage (Vrrm) is 600V.The holding current (hypostatic) for electrical, electromagnetic, and electronic devices is the minimum current which must pass through a circuit in order for it to remain in the 'ON' state, and its current can be 40mA.The forward voltage is the amount of voltage needed to get current to flow across a diode, and this thyristor has 1.6V forward voltage. Leakage current can be an indicator of the effectiveness of insulation on conductors,and its maximal leakage current can be 0.005mA.

TN1515-600B-TR Features


its RMS current (Irms) is 15A
its current can be 40mA
this thyristors has 1.6V forward voltage
its maximal leakage current can be 0.005mA


TN1515-600B-TR Applications


There are a lot of STMicroelectronics
TN1515-600B-TR applications of SCRs thyristors.


  • DC motor control and drives
  • Battery charges
  • Welders
  • Power converters
  • Lighting control
  • Heat and temperature control
  • Motor starters
  • DC motor controls - AC motor controls
  • Uninterruptable power supplies
  • Wind mill
