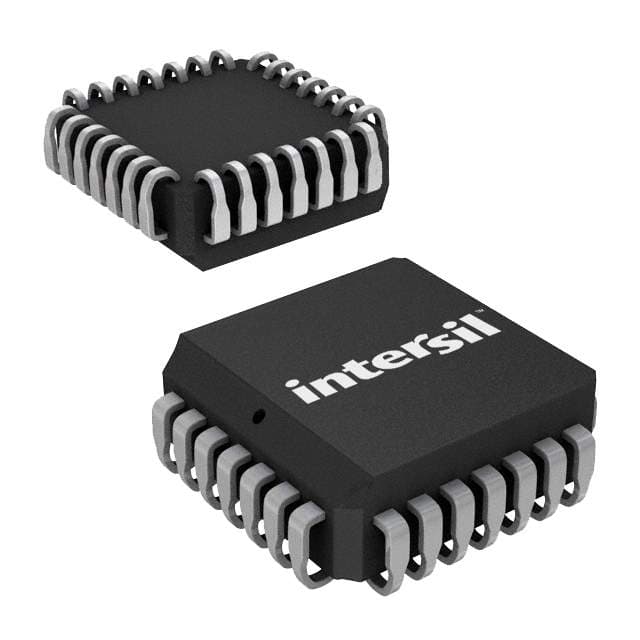

Renesas HC55130IMZ

Manufacturer No:

HC55130IMZ

Manufacturer:

Renesas

Package:

PLCC

Description:

28 Terminations 5V 28 Pin Telecom device 1 Functions Min 4.75V V Max 5.25V V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HC55130IMZ information

Renesas HC55130IMZ technical specifications, attributes, parameters and parts with similar specifications to Renesas HC55130IMZ.

Type
Parameter

Mount
Surface Mount

Package / Case
PLCC

Number of Pins
28

Published
2001

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
28

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Analog Transmission Interfaces

Terminal Position
QUAD

Terminal Form
J BEND

Number of Functions
1

Supply Voltage
5V

Pin Count
28

Operating Supply Voltage
5V

Power Supplies
5V

Temperature Grade
INDUSTRIAL

Number of Channels
1

Max Supply Voltage
5.25V

Min Supply Voltage
4.75V

Power Dissipation-Max
1.5W

Nominal Supply Current
2.7mA

Telecom IC Type
SLIC

Battery Feed
CONSTANT CURRENT/RESISTIVE

Hybrid
2-4 CONVERSION

Battery Supply
-24 TO -48 V

Height Seated (Max)
4.57mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas HC55130IMZ.

Datasheets:

intersil-hc55130imz-datasheets-9915.pdf

HC55130IMZ Overview

To save board space, the PLCC package is used.Surface Mount is the way telecom switching is mounted.Telecom switching configuration has 28 terminations.It operates with a voltage of 5V.Telecom interfaces contain 28 pins.As a telecom IC, SLIC is used.In order to provide designers with a great deal of flexibility, this telecom circuit operates on the supply voltage of 5V.A designer can make use of this telecom circuit by operating with the 2.25mA supply current.In the Analog Transmission Interfaces subcategory, telecommunications device belongs.A minimum temperature value -40°C is set to ensure normal operation.In order to maintain normal operation, 85°C must be set at its maximum value.During design, 1 functions are configured.Ideally, the voltage should be at least 4.75V.If the voltage supplied is lower than 5.25V, telecommunications device should be used.28 telecom products have pins designed specifically for their configuration.In order for it to be so flexible, 1 channels are used.

HC55130IMZ Features

Available in the PLCC package
SLIC as telecom IC type
Operating supply voltage of 5V
Operating supply current of 2.25mA

HC55130IMZ Applications

There are a lot of Intersil (Renesas Electronics America)
HC55130IMZ Telecom applications.

Add/Drop multiplexers (ADMs)
T1/E1/J1 add/drop multiplexers (MUX)
Channel Service Units (CSUs): T1/E1/J1
Fractional T1/E1/J1
BITS Timing
Digital Access Cross-connect System (DACs)
Digital Cross-connect Systems (DCS)
Frame Relay Switches and Access Devices (FRADS)
ISDN Primary Rate Interfaces (PRA)
PBXs channel bank
