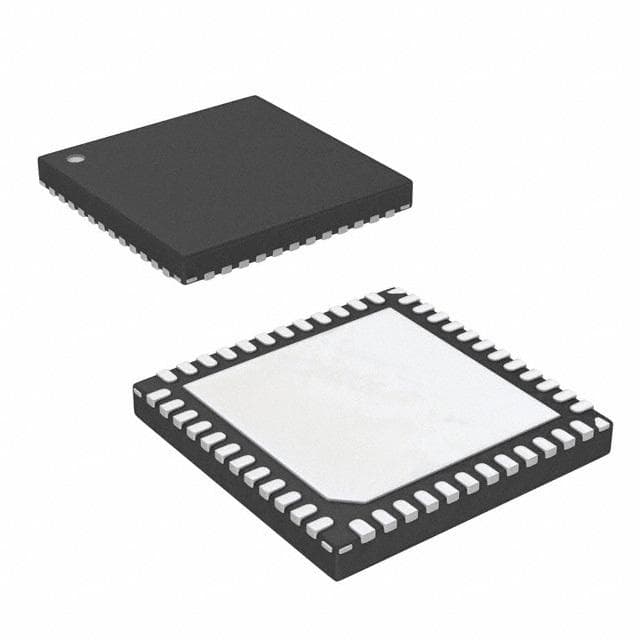

Renesas ISL6336ACRZ

Manufacturer No:

ISL6336ACRZ

Manufacturer:

Renesas

Package:

QFN

Description:

1.6V 260 Cel QUAD Specialized Voltage Regulator 48 Pins 48 Terminations QFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6336ACRZ information

Renesas ISL6336ACRZ technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6336ACRZ.

Type
Parameter

Factory Lead Time
11 Weeks

Mount
Surface Mount

Package / Case
QFN

Number of Pins
48

Published
2004

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
48

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
ALSO OPERATES IN CURRENT MODE

Subcategory
Switching Regulator or Controllers

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
48

Number of Outputs
1

Qualification Status
Not Qualified

Input Voltage-Nom
5V

Temperature Grade
COMMERCIAL

Analog IC - Other Type
SWITCHING CONTROLLER

Current - Output
200A

Voltage - Output
1.6V

Control Mode
VOLTAGE-MODE

Frequency - Switching
1MHz

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
PHASE-SHIFT

Length
7mm

Width
7mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL6336ACRZ.

Datasheets:

intersil-isl6336acrz-datasheets-4991.pdf

ISL6336ACRZ Overview

There are 1 outputs supported by the voltage regulator. Transport is made easy with the package of QFN. Volatge output for this voltage controller is 1.6V. It contains terminals with the number 48. The part has received praise for being a SWITCHING CONTROLLER voltage regulator. Initially, the pinout of the alternator regulator begins with 48 pins. Surface Mount is there for mounting on a PCB or another board. There are 48 pins on the power supply regulator. The AC voltage regulator and other Switching Regulator or Controllers play an important role in the industry. It cannot be operated at temperatures below 0°C. In general, temperatures higher than 70°Care not recommended. It is necessary to have an operating supply voltage of 5V for normal operation. In addition to this voltage regulator, the following extra features are available: ALSO OPERATES IN CURRENT MODE. In this voltage regulator, the switching frequency is set to 1MHz.

ISL6336ACRZ Features

SWITCHING CONTROLLER analog IC
Supply voltage: 5V
Switching at 1MHz

ISL6336ACRZ Applications

There are a lot of Intersil (Renesas Electronics America)
ISL6336ACRZ Specialized Voltage Regulators applications.

DDR Vooo and V? Voltage Generation
PC Dual Power Supply
Server DDR Power
Desktop Computer
Graphics Cards
Cell Phones
Wireless Modems
PCS Phones
Two-Way Pagers
PHS Phones
