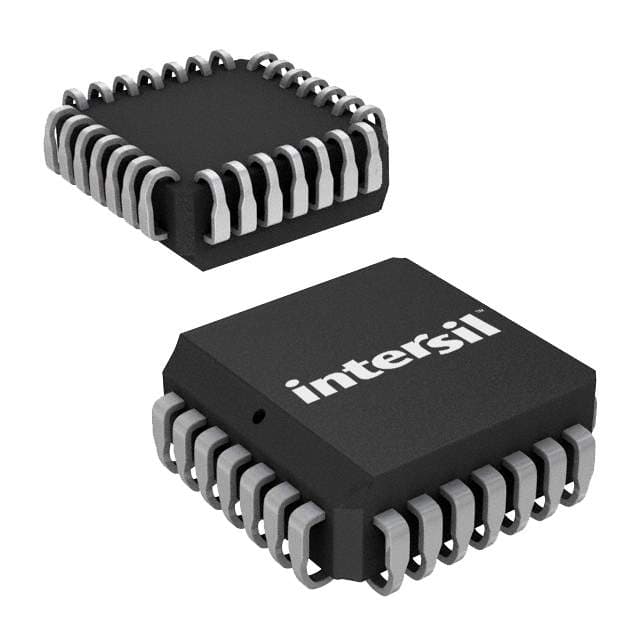

Renesas HC55120CMZ

Manufacturer No:

HC55120CMZ

Manufacturer:

Renesas

Package:

PLCC

Description:

28 Terminations 5V 28 Pin Telecom device 1 Functions Min 4.75V V Max 5.25V V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HC55120CMZ information

Renesas HC55120CMZ technical specifications, attributes, parameters and parts with similar specifications to Renesas HC55120CMZ.

Type
Parameter

Mount
Surface Mount

Package / Case
PLCC

Number of Pins
28

Published
2001

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
28

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
Analog Transmission Interfaces

Terminal Position
QUAD

Terminal Form
J BEND

Number of Functions
1

Supply Voltage
5V

Pin Count
28

Operating Supply Voltage
5V

Power Supplies
5V

Temperature Grade
COMMERCIAL

Number of Channels
1

Max Supply Voltage
5.25V

Min Supply Voltage
4.75V

Power Dissipation-Max
1.5W

Nominal Supply Current
2.7mA

Telecom IC Type
SLIC

Battery Feed
CONSTANT CURRENT/RESISTIVE

Hybrid
2-4 CONVERSION

Battery Supply
-24 TO -48 V

Height Seated (Max)
4.57mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas HC55120CMZ.

Datasheets:

intersil-hc55120cmz-datasheets-6964.pdf

intersil-hc55120cmz-datasheets-7659.pdf

HC55120CMZ Overview

In order to save space on the board, the PLCC package is used.Telecom switching is mounted in a Surface Mount-direction.Telecom switching configuration contains 28 terminations.It operates at a voltage of 5V.There are 28 pins on this telecom interface.As its telecom IC type, it uses SLIC.The supply voltage of 5V enables designers to have a great deal of flexibility.Designed to work with the supply current of 2.25mA, it provides designers with a great deal of flexibility.Analog Transmission Interfaces is a subcategory of telecommunications device .In order to ensure normal operation, the temperature is set to the minimum value of 0°C.A maximum value of 70°C is set to ensure normal operation.When designing, it is configured with 1 functions.At least 4.75V voltage should be supplied.Telecommunications device is recommended that the voltage supplied be lower than 5.25V.Pins on the 28 telecom product are designed for its configuration.In order to achieve its superior flexibility, 1 channels are used.

HC55120CMZ Features

Available in the PLCC package
SLIC as telecom IC type
Operating supply voltage of 5V
Operating supply current of 2.25mA

HC55120CMZ Applications

There are a lot of Intersil (Renesas Electronics America)
HC55120CMZ Telecom applications.

Switches
LAN Routers
Digital Modems
SONET/SDH terminal
Add/Drop multiplexers (ADMs)
T1/E1/J1 add/drop multiplexers (MUX)
Channel Service Units (CSUs): T1/E1/J1
Fractional T1/E1/J1
BITS Timing
Digital Access Cross-connect System (DACs)
