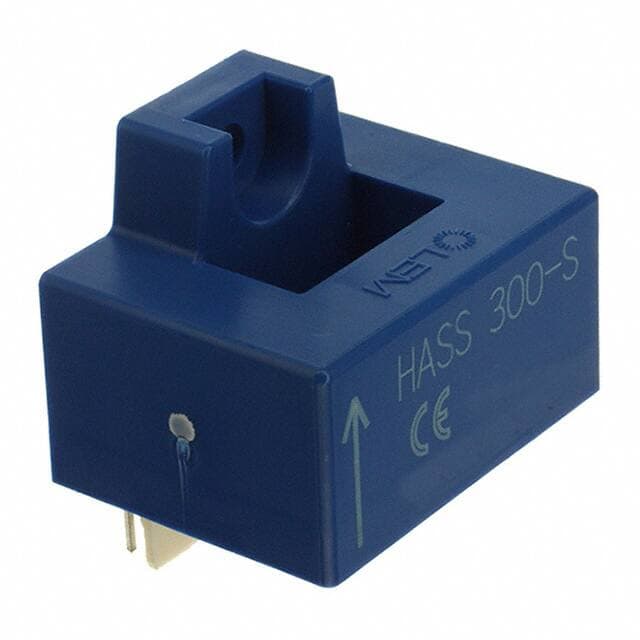

LEM HASS 300-S

Manufacturer No:

HASS 300-S

Manufacturer:

LEM

Package:

Module

Description:

HASS Series Hall Effect, Open Loop Sensor 1-Channel Bidirectional -40°C~85°C 5V DC~50kHz 300A Accuracy-±1% Linearity-±0.5%

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HASS 300-S information

LEM HASS 300-S technical specifications, attributes, parameters and parts with similar specifications to LEM HASS 300-S.

Type
Parameter

Factory Lead Time
6 Weeks

Mounting Type
Through Hole

Package / Case
Module

Operating Temperature
-40°C~85°C

Packaging
Tray

Series
HASS

Published
2011

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Voltage - Supply
5V

Frequency
DC~50kHz

Output
Ratiometric, Voltage

Current - Supply (Max)
19mA

Number of Channels
1

Polarization
Bidirectional

Accuracy
±1%

Response Time
3μs

Sensor Type
Hall Effect, Open Loop

Linearity
±0.5%

For Measuring
AC/DC

Current - Sensing
300A

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for LEM HASS 300-S.

HASS 300-S Overview

Module packages are used for the safety protection of current sensors. In order to protect these current sensors from damage, they are packaged in the Tray. They should be capable of supplying a maximum current of 19mA.

HASS 300-S Features

Moisture Sensitivity Level: Not Applicable
Operating Temperature: -40°C~85°C
1 Channels
Mounting Type: Through Hole
Sensor Type: Hall Effect, Open Loop
Supply Voltage: 5V
Frequency: DC~50kHz
Sensing Current: 300A
Module Package

HASS 300-S Applications

There are a lot of LEM USA Inc.
HASS 300-S Current Sensors applications.

Industrial Monitoring and Control Systems
Overcurrent Detection
Frequency, Voltage, and Solar Inverters
Electrical drives
General purpose inverters
AC variable speed drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies(UPS)
Switched Mode Power Supplies(SMPS)

User Guide
