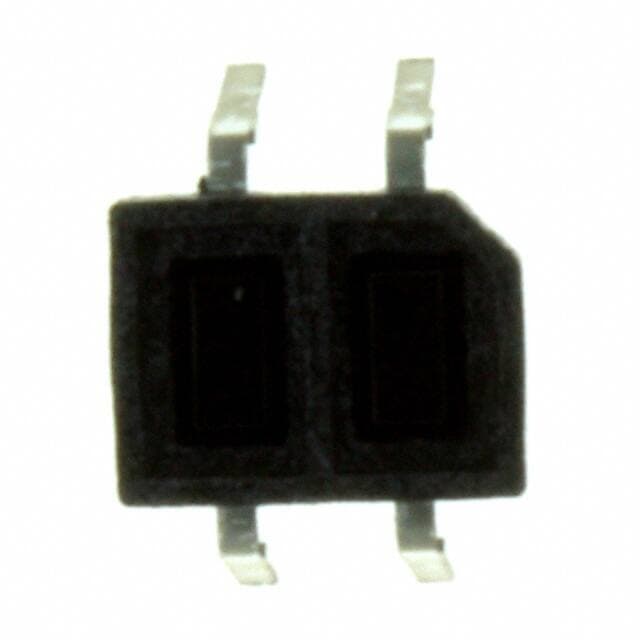

SHARP GP2S24BCJ00F
Manufacturer No:
GP2S24BCJ00F
Manufacturer:
Package:
4-SMD
Description:
Quantity:
Delivery:




Payment:






In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
GP2S24BCJ00F information
SHARP GP2S24BCJ00F technical specifications, attributes, parameters and parts with similar specifications to SHARP GP2S24BCJ00F.
- Type
- Parameter
- Mounting Type
- Surface Mount
- Package / Case
- 4-SMD
- Surface Mount
- NO
- Mounting Feature
- THROUGH HOLE MOUNT
- Operating Temperature
- -25°C~85°C
- Packaging
- Tube
- Published
- 2006
- JESD-609 Code
- e2
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Terminal Finish
- Tin/Copper (Sn/Cu)
- Reach Compliance Code
- unknown
- Body Length or Diameter
- 4mm
- Body Breadth
- 3 mm
- Output Type
- Phototransistor
- Supply Voltage-Max (Vsup)
- 1.4V
- Termination Type
- SOLDER
- Response Time
- 20?s, 20?s
- Sensing Distance
- 0.028 (0.7mm)
- Voltage - Collector Emitter Breakdown (Max)
- 35V
- Current - Collector (Ic) (Max)
- 20mA
- Sensing Method
- Reflective
- Current - DC Forward (If) (Max)
- 50mA
- Sensors/Transducers Type
- LINEAR POSITION SENSOR,PHOTOELECTRIC,DIFFUSE
- Output Range
- 0.02-0.04mA
- Measurement Range-Max
- 0.7 mm
- Body Height
- 1.7mm
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for SHARP GP2S24BCJ00F.
No product details available
