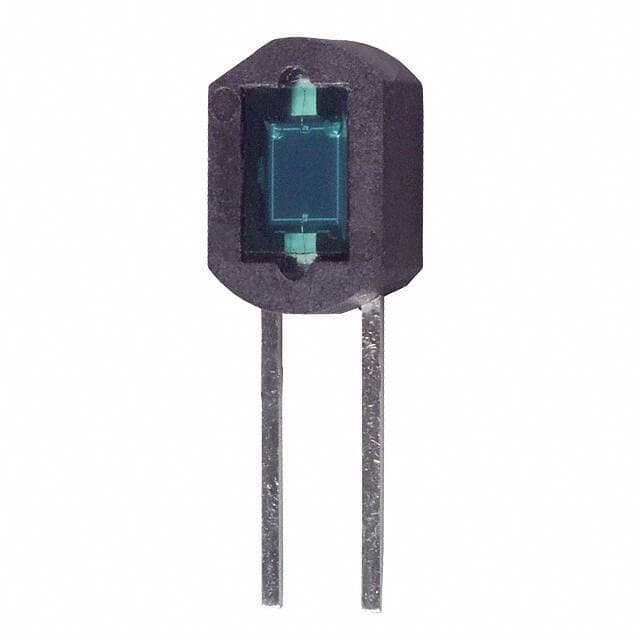

SHARP BS520E0F

Manufacturer No:

BS520E0F

Manufacturer:

SHARP

Package:

Side View

Description:

Through Hole -20°C~60°C Bulk Wavelength: 560nm Side View 5.34mm2 3pA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BS520E0F information

SHARP BS520E0F technical specifications, attributes, parameters and parts with similar specifications to SHARP BS520E0F.

Type
Parameter

Contact Plating
Copper, Silver, Tin

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Side View

Number of Pins
2

Shape
RECTANGULAR

Operating Temperature
-20°C~60°C

Packaging
Bulk

Published
1997

JESD-609 Code
e1

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Number of Functions
1

Reach Compliance Code
unknown

Configuration
SINGLE

Rise Time
180?s

Fall Time (Typ)
180 ?s

Max Reverse Voltage (DC)
10V

Reverse Voltage
10V

Wavelength
560nm

Dark Current
3pA

Spectral Range
500nm ~ 600nm

Active Area
5.34mm2

Color - Enhanced
Blue

Light Current-Nom
0.00055mA

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for SHARP BS520E0F.

BS520E0F Overview

To prevent damage, the photodiodes are packaged in a Bulk. Photodiodes are protected by Side View packages in order to ensure their safety. Continuous reverse-bias should not exceed 10V for the photodiodes. A photodiode is equipped with 2 pins. In reverse-bias mode, the photodiodes could supply 10V voltage. Despite the absence of light input, a photodiode generates 3pA electrical current.

BS520E0F Features

Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -20°C~60°C
Packaging: Bulk
Mount: Through Hole
Spectral Range: 500nm ~ 600nm

BS520E0F Applications

There are a lot of Sharp Microelectronics
BS520E0F Photodiodes applications.

Vision Controls
Measurement Levelling
High speed photo detectors
Health Monitoring
Heart Rate Monitoring
Pulse Oximetry
Pure UV-C Monitoring
Sterilization Lamp Monitoring
Optical Analytics
Optical Switches
