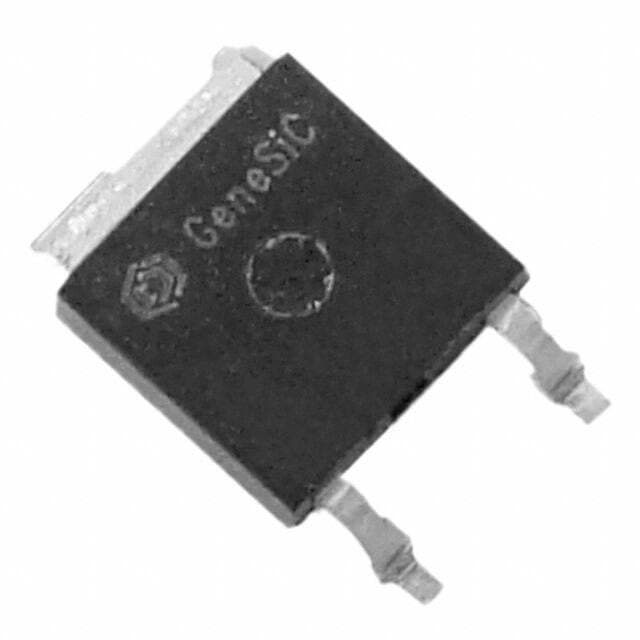

GeneSiC Semiconductor GB02SLT12-252

Manufacturer No:

GB02SLT12-252

Manufacturer:

GeneSiC Semiconductor

Package:

TO-252-3, DPak (2 Leads + Tab), SC-63

Description:

Silicon Carbide Schottky Diode Rectifier No Recovery Time > 500mA (Io) 1.8V @ 2A -55°C~175°C 50?A @ 1200V Cut Tape (CT) TO-252-3, DPak (2 Leads + Tab), SC-63 Surface Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

GB02SLT12-252 information

GeneSiC Semiconductor GB02SLT12-252 technical specifications, attributes, parameters and parts with similar specifications to GeneSiC Semiconductor GB02SLT12-252.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 6 months ago)

Factory Lead Time
49 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
TO-252-3, DPak (2 Leads + Tab), SC-63

Number of Pins
3

Packaging
Cut Tape (CT)

Published
2015

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Max Operating Temperature
175°C

Min Operating Temperature
-55°C

HTS Code
8541.10.00.80

Capacitance
127pF

Subcategory
Rectifier Diodes

Number of Elements
1

Element Configuration
Single

Speed
No Recovery Time > 500mA (Io)

Diode Type
Silicon Carbide Schottky

Current - Reverse Leakage @ Vr
50?A @ 1200V

Voltage - Forward (Vf) (Max) @ If
1.8V @ 2A

Forward Current
2A

Output Current-Max
2A

Voltage - DC Reverse (Vr) (Max)
1200V

Current - Average Rectified (Io)
5A DC

Max Reverse Voltage (DC)
1.2kV

Average Rectified Current
5A

Reverse Recovery Time
0ns

Peak Reverse Current
200nA

Max Repetitive Reverse Voltage (Vrrm)
1.2kV

Capacitance @ Vr, F
131pF @ 1V 1MHz

Max Forward Surge Current (Ifsm)
200A

Max Junction Temperature (Tj)
175°C

Natural Thermal Resistance
2.3 °C/W

Height
2.385mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for GeneSiC Semiconductor GB02SLT12-252.

GB02SLT12-252 Overview

In this device, there is an average rectified current of 5A volts.Forward current may not exceed 2A.Phase diode rectifier is the amount an object or material resists a heat flow to a specific temperature difference, and Phase diode rectifiers natural thermal resistance is 2.3 °C/W.Depending on the capacitance, the device may deliver a value of 127pF.Output current is maximal at 2A.As the data chart indicates, the peak reverse is 200nA.

GB02SLT12-252 Features

an average rectified current of 5A volts
2A is the maximum value
the peak reverse is 200nA

GB02SLT12-252 Applications

There are a lot of GeneSiC Semiconductor
GB02SLT12-252 applications of single-phase diode rectifier.

DC motor control and drives
Battery chargers
Welders
Power converters
Reverse Polarity Protection
Ultra High-Speed Switching
Freewheeling
Polarity Protection Diode
Recirculating Diode
Switching Diode
