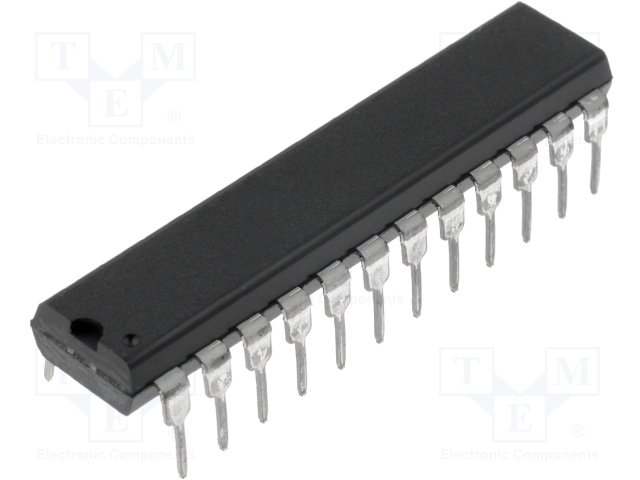

LATTICE GAL22V10D-7LPN

Manufacturer No:

GAL22V10D-7LPN

Manufacturer:

LATTICE

Package:

24-DIP (0.300, 7.62mm)

Description:

5V 2.54mm PMIC GAL®22V10 Series GAL22V10 24 Pin 166MHz 5V 24-DIP (0.300, 7.62mm)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

GAL22V10D-7LPN information

LATTICE GAL22V10D-7LPN technical specifications, attributes, parameters and parts with similar specifications to LATTICE GAL22V10D-7LPN.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
24-DIP (0.300, 7.62mm)

Number of Pins
24

Operating Temperature
0°C~75°C TA

Packaging
Tube

Series
GAL®22V10

Published
2000

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
24

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

HTS Code
8542.39.00.01

Subcategory
Programmable Logic Devices

Technology
CMOS

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Supply Voltage
5V

Terminal Pitch
2.54mm

Reach Compliance Code
unknown

Frequency
166MHz

Base Part Number
GAL22V10

Pin Count
24

Number of Outputs
10

Qualification Status
Not Qualified

Power Supplies
5V

Programmable Type
EE PLD

Max Supply Voltage
5.25V

Min Supply Voltage
4.75V

Number of I/O
10

Nominal Supply Current
140mA

Propagation Delay
7.5 ns

Turn On Delay Time
7.5 ns

Architecture
PAL-TYPE

Output Function
MACROCELL

Number of Macro Cells
10

Number of Dedicated Inputs
11

Voltage Supply - Internal
4.75V~5.25V

Number of Product Terms
132

Length
31.75mm

Height Seated (Max)
5.334mm

Width
7.62mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for LATTICE GAL22V10D-7LPN.

GAL22V10D-7LPN Overview

This network has 10macro cells, which are cells that provide radio coverage provided by a high-power cell site (tower, antenna, mast).You can find it in package 24-DIP (0.300, 7.62mm).As a result, it has 10 I/O ports programmed.24 terminations have been programmed into the device.Its terminal position is DUAL.It is powered by a voltage of 5V volts.This part is part of the family Programmable Logic Devices.Package the chip by Tube.In order to ensure the reliability of the device, it is designed to operate at a temperature of [0].Chips should be mounted by Through Hole.In terms of FPGAs, it belongs to the GAL®22V10 series.It has 24 pins programmed.Its related parts can be found in the [0].The electronic component is mounted by Through Hole.There are 24 pins on the device.In this case, the maximum supply voltage is 5.25V.Despite its minimal supply voltage of 4.75V, it is capable of operating.A total of 5V power supplies are needed to run it.In this case, 166MHz is the frequency that can be achieved.Input signals are detected by 11 dedicated inputs.The output is configured with the value 10.In addition, it contains 132 product terms.

GAL22V10D-7LPN Features

24-DIP (0.300, 7.62mm) package
10 I/Os
The operating temperature of 0°C~75°C TA
24 pin count
24 pins
5V power supplies
10 outputs

GAL22V10D-7LPN Applications

There are a lot of Lattice Semiconductor Corporation
GAL22V10D-7LPN CPLDs applications.

Discrete logic functions
Bootloaders for FPGAs
Address decoders
Custom state machines
Digital systems
Portable digital devices
Handheld digital devices
Battery operated portable devices
Complex programmable logic devices
Digital designs
