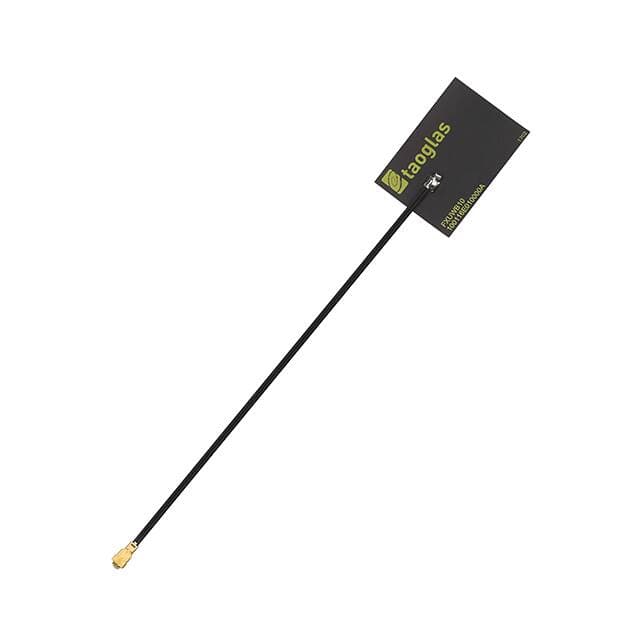

Taoglas Limited FXUWB10.01.0100C

Manufacturer No:

FXUWB10.01.0100C

Manufacturer:

Taoglas Limited

Package:

Description:

3 Bands FlexPIFA SHF f > 4GHz Surface Mount SMA Male 4.05GHz 7.1GHz 9.25GHz 4.8dBi, 5.9dBi, 7.1dBi 0.004 0.10mm UWB

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FXUWB10.01.0100C information

Taoglas Limited FXUWB10.01.0100C technical specifications, attributes, parameters and parts with similar specifications to Taoglas Limited FXUWB10.01.0100C.

Type
Parameter

Factory Lead Time
8 Weeks

Mounting Type
Surface Mount

Feature
Cable - 100mm

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
SMA Male

Applications
UWB

Power - Max
10W

Gain
4.8dBi, 5.9dBi, 7.1dBi

Frequency Range
3.1GHz~5GHz 6GHz~8.2GHz 8.2GHz~10.3GHz

Antenna Type
FlexPIFA

VSWR
1.8, 2.2, 3

Number of Bands
3

Frequency Group
SHF f > 4GHz

Frequency (Center/Band)
4.05GHz 7.1GHz 9.25GHz

Height (Max)
0.004 0.10mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Taoglas Limited FXUWB10.01.0100C.

FXUWB10.01.0100C Overview

Surface Mount makes it suitable for general RF Antennas.

FXUWB10.01.0100C Features

With Surface Mount

FXUWB10.01.0100C Applications

There are a lot of Taoglas Limited
FXUWB10.01.0100C RF Antennas applications.

Lightning strikes
Solar flares
Static electricity
Cosmic noise
Generators
Lightings
Rectifiers
Inverters
Satellites
Transmission
