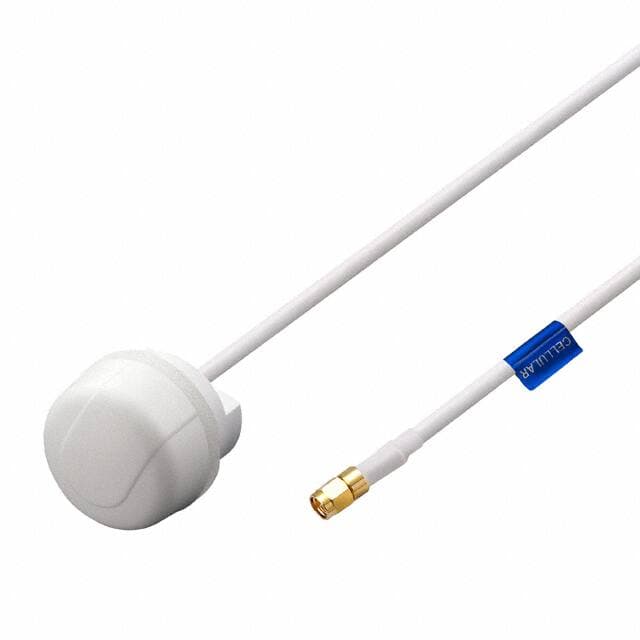

Taoglas Limited G21.B.W.301111

Manufacturer No:

G21.B.W.301111

Manufacturer:

Package:

Description:

5 Bands Dome Wide B Panel Mount SMA Male 850MHz 900MHz 1.8GHz 1.9GHz 2.1GHz 1dBi, 1dBi, -0.9dBi, -1.1dBi, -1.1dBi Bulk 1.122 28.50mm CDMA, EVDO, GPRS, GSM, HSPA, UMTS, WCDMA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

G21.B.W.301111 information

Taoglas Limited G21.B.W.301111 technical specifications, attributes, parameters and parts with similar specifications to Taoglas Limited G21.B.W.301111.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Panel

Mounting Type
Panel Mount

Packaging
Bulk

Series
Hercules

Feature
Cable - 3m

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
SMA Male

Applications
CDMA, EVDO, GPRS, GSM, HSPA, UMTS, WCDMA

Max Power Dissipation
10W

Ingress Protection
IP67, IP69K

Impedance
50Ohm

Power - Max
10W

Gain
1dBi, 1dBi, -0.9dBi, -1.1dBi, -1.1dBi

Max Frequency
2.17GHz

Frequency Range
824MHz~960MHz 1.71GHz~2.17GHz

RF Family/Standard
Cellular

Antenna Type
Dome

VSWR
3.5

Number of Bands
5

Frequency Group
Wide B

Frequency (Center/Band)
850MHz 900MHz 1.8GHz 1.9GHz 2.1GHz

Return Loss
-11dB, -12.4dB, -17.5dB, -18.3dB, -18.1dB

Height (Max)
1.122 28.50mm

RoHS Status
RoHS Compliant

Ratings
IP69K

Download datasheets and manufacturer documentation for Taoglas Limited G21.B.W.301111.

G21.B.W.301111 Overview

RF Antennass can be carried out with Panel Mount.This Antenna RF is part of the Hercules series.Packaging for the RF modulator consists of Bulk solid enclosures.Its Panel qualifies it for most RF ics.

G21.B.W.301111 Features

With Panel Mount
Hercules series

G21.B.W.301111 Applications

There are a lot of Taoglas Limited
G21.B.W.301111 RF Antennas applications.

Cosmic noise
Generators
Lightings
Rectifiers
Inverters
Satellites
Transmission
Cellphones
Laptops
Marine Navigation
