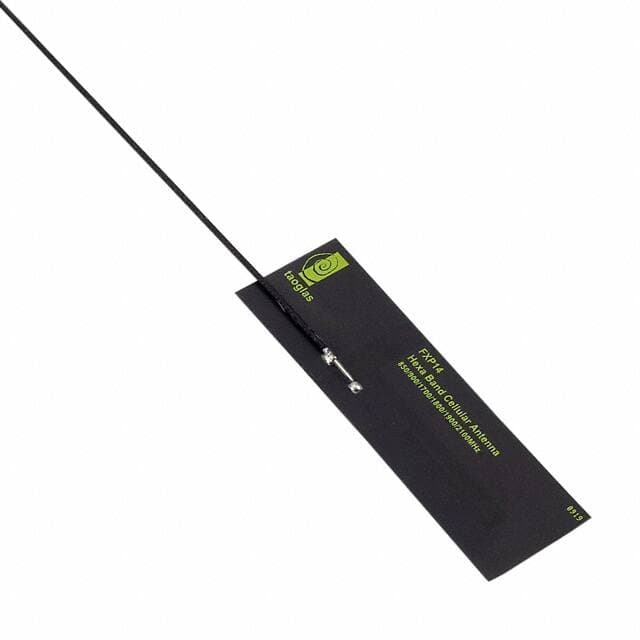

Taoglas Limited FXP14.24.0100B

Manufacturer No:

FXP14.24.0100B

Manufacturer:

Package:

Description:

6 Bands Flat Patch Wide B Adhesive IPEX MHF4 850MHz 900MHz 1.7GHz 1.8GHz 1.9GHz 2.1GHz 2dBi, 1.5dBi, 3dBi, 2.5dBi, 2dBi, 2.5dBi Bulk 0.004 0.10mm 3G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, PCS, UMTS, WCDMA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FXP14.24.0100B information

Taoglas Limited FXP14.24.0100B technical specifications, attributes, parameters and parts with similar specifications to Taoglas Limited FXP14.24.0100B.

Type
Parameter

Factory Lead Time
12 Weeks

Mount
Adhesive

Mounting Type
Adhesive

Packaging
Bulk

Feature
Cable - 100mm

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
IPEX MHF4

Applications
3G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, PCS, UMTS, WCDMA

Frequency
2.1GHz

Impedance
50Ohm

Power - Max
5W

Gain
2dBi, 1.5dBi, 3dBi, 2.5dBi, 2dBi, 2.5dBi

RF Family/Standard
Cellular

Antenna Type
Flat Patch

VSWR
2.5

Number of Bands
6

Frequency Group
Wide B

Frequency (Center/Band)
850MHz 900MHz 1.7GHz 1.8GHz 1.9GHz 2.1GHz

Return Loss
-7dB, -12dB, -8dB, -9dB, -9dB, -8dB

Height
101.6?m

Length
70mm

Width
20mm

Height (Max)
0.004 0.10mm

Download datasheets and manufacturer documentation for Taoglas Limited FXP14.24.0100B.

FXP14.24.0100B Overview

RF Antennass can be carried out with Adhesive.Packaging for the RF modulator consists of Bulk solid enclosures.Its Adhesive qualifies it for most RF ics.

FXP14.24.0100B Features

With Adhesive

FXP14.24.0100B Applications

There are a lot of Taoglas Limited
FXP14.24.0100B RF Antennas applications.

Cosmic noise
Generators
Lightings
Rectifiers
Inverters
Satellites
Transmission
Cellphones
Laptops
Marine Navigation
