ONSEMI FXMAR2102L8X
ONSEMI FXMAR2102L8X

ONSEMI FXMAR2102L8X

Manufacturer No:

FXMAR2102L8X

Manufacturer:

ONSEMI

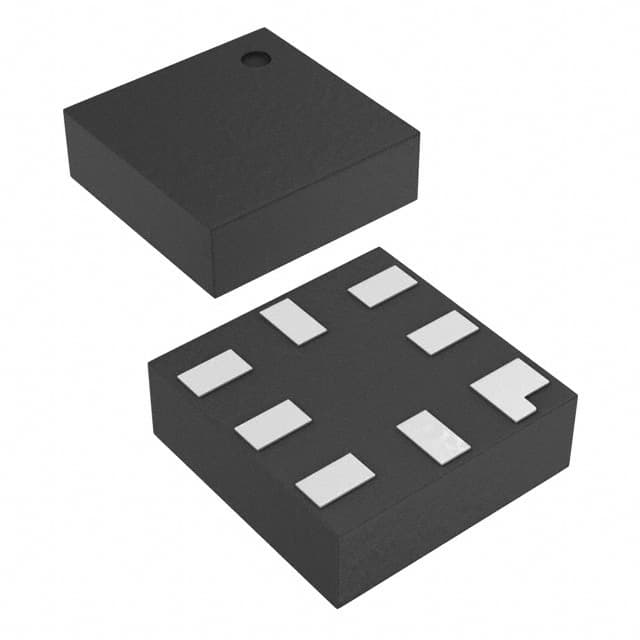

Package:

8-UFQFN

Description:

Dual Supply 2-Bit Voltage Translator/ Isolator for I2C Applications

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FXMAR2102L8X information

ONSEMI FXMAR2102L8X technical specifications, attributes, parameters and parts with similar specifications to ONSEMI FXMAR2102L8X.

  • Type
  • Parameter
  • VCCA Max (V)
  • 5.5
  • VCCB Min (V)
  • 1.65
  • Case Outline
  • 523AY
  • Input Level
  • CMOS
  • MSL Temp (°C)
  • 260
  • Type
  • Autosense
  • IO Max (mA)
  • 6
  • TA Min (°C)
  • -40
  • Package Type
  • UQFN-8
  • MSL Type
  • 1
  • Container Type
  • REEL
  • VCCA Min (V)
  • 1.65
  • VCCB Max (V)
  • 5.5
  • ICC Max (μA)
  • 5
  • tpd Max (ns)
  • 3
  • Data Rate (Mbps)
  • 74
  • TA Max (°C)
  • 85
  • Container Qty.
  • 5000
  • Channels
  • 2

Download datasheets and manufacturer documentation for ONSEMI FXMAR2102L8X.

Datasheet:

Package Drawing:

The FXMAR2102 is a high-performance configurable dual-voltage-supply translator for bi-directional voltage translation over a wide range of input and output voltages levels. The FXMAR2102 also works in a push-pull environment.It is intended for use as a voltage translator between I2C -Bus® compliant masters and slaves. Internal 10K pull-up resistors are provided.The device is designed so the A port tracks the VCCA level and the B port tracks the VCCB level. This allows for bi-directional A/B-port voltage translation between any two levels from 1.65V to 5.5V. VCCA can equal VCCB from 1.65V to 5.5V. Either VCC can be powered-up first. Internal power-down control circuits place the device in 3-state if either VCC is removed.The two ports of the device have automatic directionsense capability. Either port may sense an input signal and transfer it as an output signal to the other port.

Application

  • This product is general usage and suitable for many different applications.

Feature

  • Bi-Directional Interface between Any Two Levels: 1.65V to 5.5V
  • No Direction Control Needed
  • Internal 10K Pull-Up Resistors
  • System GPIO Resources Not Required when OE Tied to VCCA
  • I2C-Bus® Isolation
  • A/B Port VOL = 175mV (Typical), VIL = 150mV, IOL = 6mA
  • Open-Drain Inputs / Outputs
  • Works in Push Pull Environment
  • Accommodates Standard-Mode and Fast-Mode I2C-Bus Devices
  • Supports I2C Clock Stretching & Multi-Master
  • Fully Configurable: Inputs and Outputs Track VCC
  • Non-Preferential Power-Up; Either VCC Can Power-Up First
  • Outputs Switch to 3-State if Either VCC is at GND
  • Tolerant Output Enable: 5V
  • Packaged in 8-Terminal Leadless MicroPak™ (1.6mm x 1.6mm) and Ultrathin MLP (1.2mm x 1.4mm)
  • ESD Protection Exceeds:
  • ESD Protection Exceeds:
  • All Pins:4kV HBM ESD (per JESD22-A114)
  • B-Port:8kV HBM ESD (per vs. GND & vs. VCCB)
  • 2kV CDM (per JESD22-C101)
