Manufacturer No:

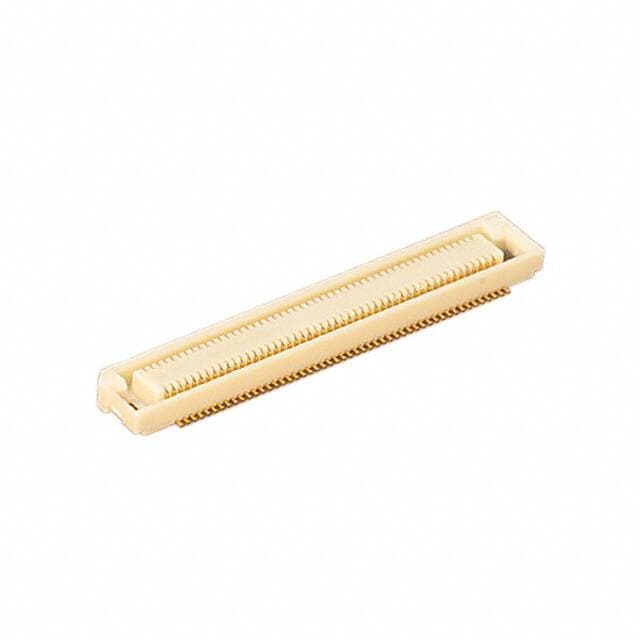

FX8-100S-SV(22)

Manufacturer:

HIROSE

Package:

Description:

Receptacle, Center Strip Contacts Tape & Reel (TR) 2 Rows 0.024 0.60mm Surface Mount 100 Positions FunctionMax? FX8 Gold SMD/SMT Bronze

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FX8-100S-SV(22) information

HIROSE FX8-100S-SV(22) technical specifications, attributes, parameters and parts with similar specifications to HIROSE FX8-100S-SV(22).

  • Type
  • Parameter
  • Factory Lead Time
  • 10 Weeks
  • Contact Material
  • Bronze
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Packaging
  • Tape & Reel (TR)
  • Series
  • FunctionMax? FX8
  • Published
  • 2008
  • JESD-609 Code
  • e3
  • Feature
  • Board Guide
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • SMD/SMT
  • Connector Type
  • Receptacle, Center Strip Contacts
  • Number of Positions
  • 100
  • Number of Rows
  • 2
  • Gender
  • Receptacle
  • Additional Feature
  • LOW PROFILE
  • Subcategory
  • Headers and Edge Type Connectors
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Mixed Contacts
  • NO
  • Pitch
  • 0.024 0.60mm
  • Total Number of Contacts
  • 100
  • Current Rating
  • 400mA
  • Number of Conductors
  • ONE
  • Reference Standard
  • UL
  • Contact Finish
  • Gold
  • Voltage - Rated AC
  • 100V
  • Reliability
  • COMMERCIAL
  • Body Length or Diameter
  • 1.441 inch
  • Number Of PCB Rows
  • 2
  • PCB Contact Pattern
  • RECTANGULAR
  • Operating Temperature (Max)
  • 85°C
  • Mating Information
  • MULTIPLE MATING PARTS AVAILABLE
  • Operating Temperature (Min)
  • -55°C
  • UL Flammability Code
  • 94V-0
  • Body Depth
  • 0.086 inch
  • Rated Current (Signal)
  • 0.4A
  • Contact Style
  • BELLOWED TYPE
  • Contact Resistance
  • 45mOhm
  • Polarization Key
  • POLARIZED RIB(S)
  • Dielectric Withstanding Voltage
  • 300VAC V
  • PCB Contact Row Spacing
  • 5.6896 mm
  • Durability
  • 50 Cycles

Download datasheets and manufacturer documentation for HIROSE FX8-100S-SV(22).

Datasheets:

FX8-100S-SV(22) Overview


Currently, it is packaged in Receptacle, Center Strip Contacts.A Tape & Reel (TR) case is used to package the product.The mounting type of the device is Surface Mount.A product of the FunctionMax? FX8 Series, it belongs to the range of products of that series.The operating system can be configured to maintain the value of Board Guide when it operates.Using a Surface Mount socket is required in order to mount the item.Furthermore, there are other features available, such as LOW PROFILE, to name a few.
