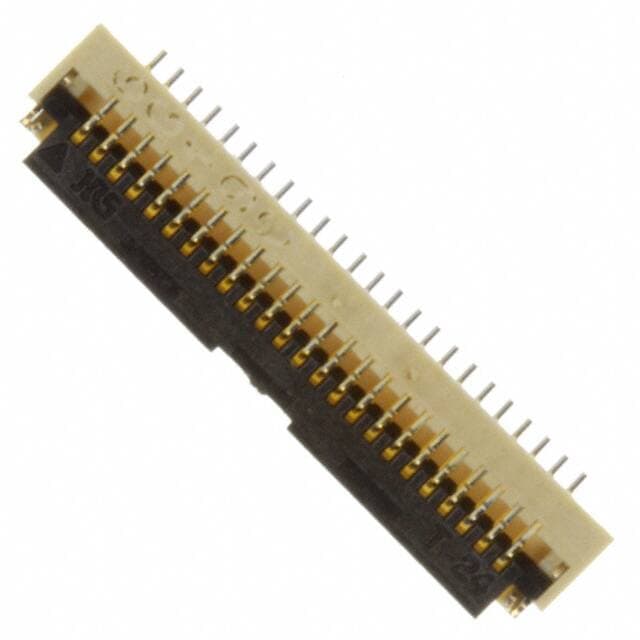

HIROSE FH19SC-24S-0.5SH(09)
HIROSE FH19SC-24S-0.5SH(09)

HIROSE FH19SC-24S-0.5SH(09)

Manufacturer No:

FH19SC-24S-0.5SH(09)

Manufacturer:

HIROSE

Package:

Description:

FH19SC Series FFC, FPC Contacts, Bottom Tape & Reel (TR) 0.020 0.50mm Solder 24 Positions Surface Mount, Right Angle Gold -55°C~85°C 0.5A

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FH19SC-24S-0.5SH(09) information

HIROSE FH19SC-24S-0.5SH(09) technical specifications, attributes, parameters and parts with similar specifications to HIROSE FH19SC-24S-0.5SH(09).

  • Type
  • Parameter
  • Factory Lead Time
  • 15 Weeks
  • Contact Material
  • Phosphor Bronze
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount, Right Angle
  • Housing Material
  • Liquid Crystal Polymer (LCP), Halogen Free
  • Actuator Material
  • Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
  • Operating Temperature
  • -55°C~85°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • FH19SC
  • JESD-609 Code
  • e4
  • Feature
  • Solder Retention, Zero Insertion Force (ZIF)
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • ECCN Code
  • EAR99
  • Connector Type
  • FFC/FPC CONNECTOR
  • Number of Positions
  • 24
  • Number of Rows
  • 1
  • Gender
  • Receptacle
  • Voltage - Rated
  • 50V
  • Additional Feature
  • ZIF, LOW PROFILE
  • HTS Code
  • 8536.69.40.51
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • Filter Feature
  • NO
  • Mixed Contacts
  • NO
  • Option
  • GENERAL PURPOSE
  • Current Rating (Amps)
  • 0.5A
  • Pitch
  • 0.020 0.50mm
  • Total Number of Contacts
  • 24
  • Reach Compliance Code
  • unknown
  • Current Rating
  • 500mA
  • Contact Finish
  • Gold
  • UL Flammability Code
  • 94V-0
  • Housing Color
  • Beige
  • Insulation Resistance
  • 500MOhm
  • Wire/Cable Type
  • Flat Flex
  • Mating Cycles
  • 20
  • Flat Flex Type
  • FFC, FPC
  • Connector/Contact Type
  • Contacts, Bottom
  • Cable End Type
  • Tapered
  • Locking Feature
  • Flip Lock
  • Actuator Color
  • Black
  • Height Above Board
  • 0.037 0.95mm
  • FFC, FCB Thickness
  • 0.30mm
  • Material Flammability Rating
  • UL94 V-0
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for HIROSE FH19SC-24S-0.5SH(09).

Datasheets:

FH19SC-24S-0.5SH(09) Overview


A FFC/FPC CONNECTOR package is included with it.Surface Mount, Right Angle indicates that the device is mounted.An Tape & Reel (TR) case is utilized for packaging the product.The product is a part of the FH19SC Series.Furthermore, there are other features such as ZIF, LOW PROFILE, to name a few.In many ways, Solder Retention, Zero Insertion Force (ZIF) makes it more powerful.By Surface Mount, the part is mounted.Operating temperature is set to -55°C~85°C.
