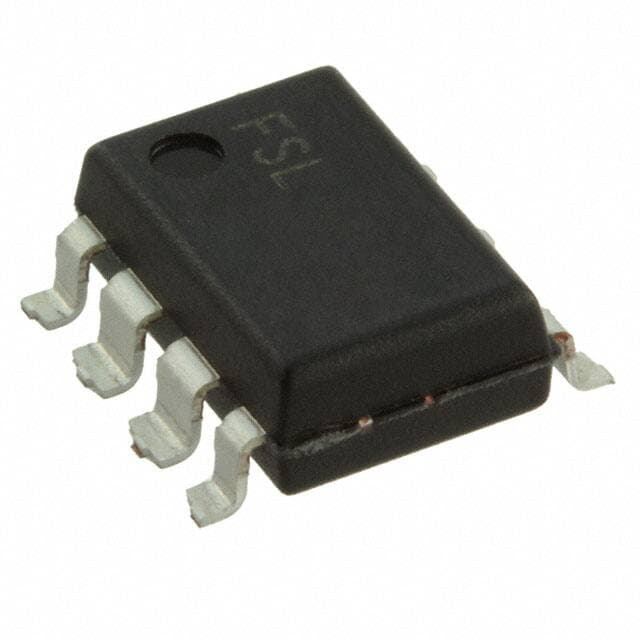

ONSEMI FSQ510M
Manufacturer No:
FSQ510M
Manufacturer:
Package:
8-SMD (7 Leads), Gull Wing
Description:
6.7V~20V 7 Pin FSQ510 AC to DC power converter FPS? Series 1 Outputs 94.3kHz~132kHz
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
FSQ510M information
ONSEMI FSQ510M technical specifications, attributes, parameters and parts with similar specifications to ONSEMI FSQ510M.
- Type
- Parameter
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 8-SMD (7 Leads), Gull Wing
- Number of Pins
- 7
- Weight
- 776.7mg
- Operating Temperature
- -40°C~140°C TJ
- Packaging
- Tube
- Series
- FPS?
- JESD-609 Code
- e3
- Pbfree Code
- yes
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- ECCN Code
- EAR99
- Resistance
- 28Ohm
- Terminal Finish
- Tin (Sn)
- Power (Watts)
- 9W
- Subcategory
- Switching Regulator or Controllers
- Max Power Dissipation
- 1.38W
- Terminal Position
- DUAL
- Base Part Number
- FSQ510
- Number of Outputs
- 1
- Nominal Supply Current
- 800?A
- Power Dissipation
- 1.38W
- Output Current
- 280mA
- Max Supply Current
- 1mA
- Control Features
- Sync
- Topology
- Flyback
- Control Mode
- CURRENT-MODE
- Frequency - Switching
- 94.3kHz~132kHz
- Max Output Power
- 6W
- Internal Switch(s)
- Yes
- Fault Protection
- Current Limiting, Over Load, Over Temperature
- Max Duty Cycle
- 66 %
- Duty Cycle
- 60%
- Output Isolation
- Isolated
- Voltage - Start Up
- 8.7V
- Min Breakdown Voltage
- 700V
- Height
- 3.6mm
- Length
- 9.4mm
- Width
- 6.6mm
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for ONSEMI FSQ510M.
ReachStatement:
FSQ510M Overview
An embedded ac to dc converter is included in 8-SMD (7 Leads), Gull Wing package.Tube case is available for the ac dc converter.Surface Mount mounts this AC/DC converter.The ac dc converter needs to be operated at -40°C~140°C TJ °C in order to perform.There is 94.3kHz~132kHz switching frequency.Supply voltage (Vcc/Vdd) does not need to exceed 6.7V~20V .In this ac/dc converter, there are 7 pins.The ac dc converters are suitable for mounting by Surface Mount .This AC to DC converter belongs to the FPS? family of manufacturers.If you select the FSQ510 family, you will be able to search similar acdc converters.A total of 1 outputs are available for processing.The ac to dc conversions can be found in Switching Regulator or Controllers .280mA is set as the output current.Supply currents up to 1mA can be handled by this power AC DC.As a result, this power AC DC's resistance is 28Ohm .Using the AC to DC power converter with 6W maximum output power is possible.
FSQ510M Features
Packaged with 8-SMD (7 Leads), Gull Wing
Switching Frequency at 94.3kHz~132kHz
With 7 pins
Output Current at 280mA
Resistance : 28Ohm
FSQ510M Applications
There are a lot of ON Semiconductor
FSQ510M AC DC Converters applications.
- Linear Adapter Replacements
- Chargers for cell/cordless phones
- PDAs
- MP3
- Portable audio
- Adapters
- Networking
- Battery Chargers
- Power Adaptors
- Standby Power Supplies
