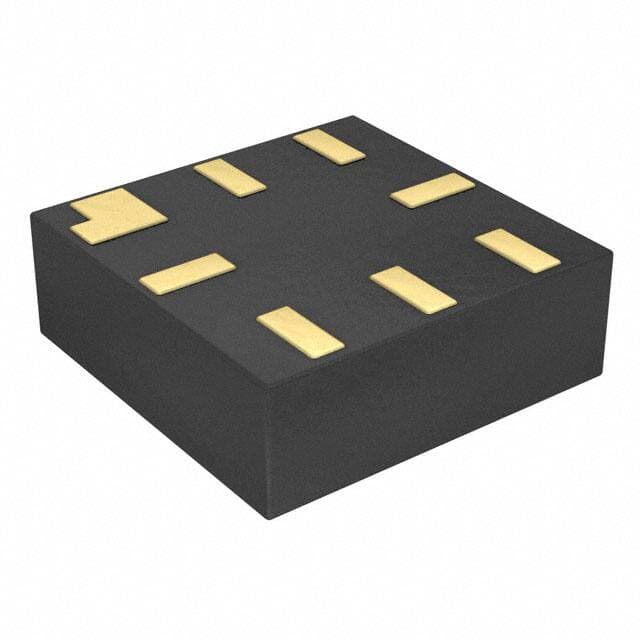

ONSEMI FSA1256L8X
ONSEMI FSA1256L8X

ONSEMI FSA1256L8X

Manufacturer No:

FSA1256L8X

Manufacturer:

ONSEMI

Package:

8-UFQFN

Description:

35ns, 15ns SPST - NO 1.15Ohm BOTTOM Analog Switches BREAK-BEFORE-MAKE FSA1256 2nA Typ 2.7V 8-UFQFN

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FSA1256L8X information

ONSEMI FSA1256L8X technical specifications, attributes, parameters and parts with similar specifications to ONSEMI FSA1256L8X.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 2 days ago)
  • Factory Lead Time
  • 6 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 8-UFQFN
  • Number of Pins
  • 8
  • Weight
  • 25mg
  • Operating Temperature
  • -40°C~85°C TA
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2016
  • JESD-609 Code
  • e4
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 8
  • ECCN Code
  • EAR99
  • Resistance
  • 1.15Ohm
  • Terminal Finish
  • Nickel/Palladium/Gold (Ni/Pd/Au)
  • Subcategory
  • Multiplexer or Switches
  • Max Power Dissipation
  • 180mW
  • Technology
  • CMOS
  • Terminal Position
  • BOTTOM
  • Terminal Form
  • BUTT
  • Number of Functions
  • 2
  • Terminal Pitch
  • 0.5mm
  • Base Part Number
  • FSA1256
  • Output
  • SEPARATE OUTPUT
  • Number of Channels
  • 2
  • Max Supply Voltage
  • 5.5V
  • Min Supply Voltage
  • 1.65V
  • Nominal Supply Current
  • 100nA
  • Power Dissipation
  • 180mW
  • Max Supply Current
  • 500nA
  • Throw Configuration
  • SPDT
  • Turn On Delay Time
  • 50 ns
  • Supply Type
  • Single
  • Bandwidth
  • 300MHz
  • Turn-Off Delay Time
  • 20 ns
  • On-State Resistance (Max)
  • 1.15Ohm
  • Multiplexer/Demultiplexer Circuit
  • 1:1
  • Off-state Isolation-Nom
  • 70 dB
  • Current - Leakage (IS(off)) (Max)
  • 2nA Typ
  • Channel Capacitance (CS(off), CD(off))
  • 11.5pF
  • Switch Circuit
  • SPST - NO
  • Switch Time (Ton, Toff) (Max)
  • 35ns, 15ns
  • Charge Injection
  • 20pC
  • Channel-to-Channel Matching (ΔRon)
  • 60m Ω

Download datasheets and manufacturer documentation for ONSEMI FSA1256L8X.

Datasheets:

PCN Design/Specification:

PCN Packaging:

FSA1256L8X Overview


This electronic part is conveniently packaged in 8-UFQFN, making it easy to ship abroad. This high-reliability packaging method uses advanced packaging methods Tape & Reel (TR). A switch device like this is mounted in Surface Mount. 1:1 is the ratio of multiplexer to demultiplexer circuits. An extended operating temperature of -40°C~85°C TA degrees Celsius. In total, there have been 8 terminations. A 2 channel electronic part produces high-quality output. A 2.7V voltage supply should turn on and run the electronic component. Unlike digital switches, these are based on SPST - NO switching circuits. Try searching for FSA1256 variants of the analog switch ic. Analog switches have 1.15Ohm internal resistance. To find out what the 8 pins do, please refer to the datasheets. It is a typical Multiplexer or Switches analog multiplexer. Users should never supply a voltage higher than 5.5V to a switch device. Analog switch ics with Single supply type are cost-effective. There should be 1.65V voltage fed to the electrical part below 1.65V. A voltage of 1.65V~5.5V is required for this switch device, which drains from a single voltage source. The switch multiplexer may be damaged if it is exposed to voltage greater than 500nA. The outputs of this digital multiplexer are SEPARATE OUTPUT in number. In 300MHz-bandwidths, data can be transferred. Resistivity from Drain to Source is 9.5Ohm for this electronic part.

FSA1256L8X Features


2 Channels
Switch Circuit: SPST - NO
Bandwidth: 300MHz
Drain-to-Source resistance: 9.5Ohm


FSA1256L8X Applications


There are a lot of ON Semiconductor
FSA1256L8X Analog Switches & Multiplexers ICs applications.


  • Ultrasound
  • Audio and video switching
  • Automatic test equipment
  • Precision data acquisition
  • Battery-powered systems
  • Sample-and-hold systems
  • Communication systems
  • Data Acquisition Systems
  • Relay Replacement
  • Battery Powered Systems
